Transmission Assembly: Component

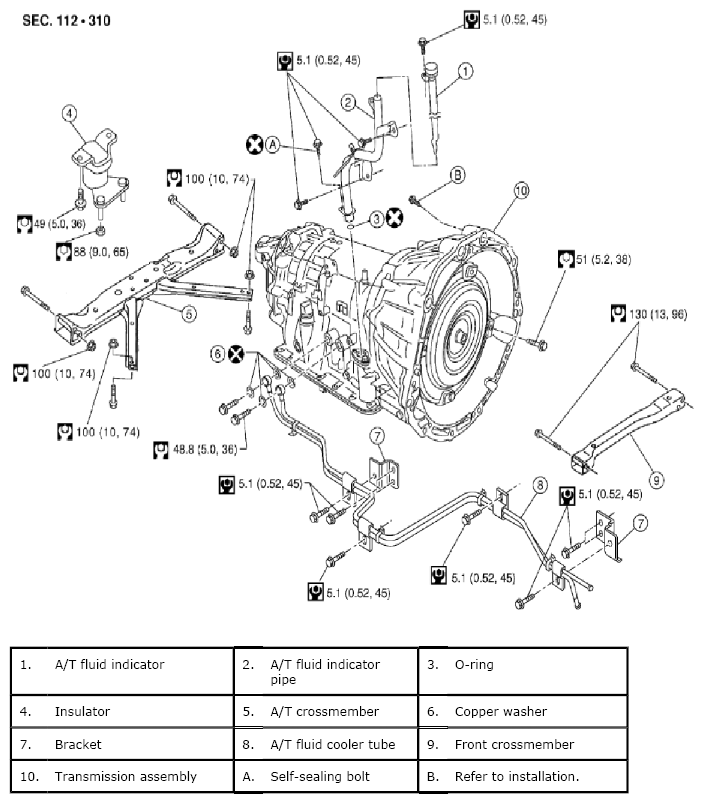

Fig 1: Exploded View Of Transmission Assembly (QR25DE)
Courtesy of SUZUKI OF AMERICA CORP.

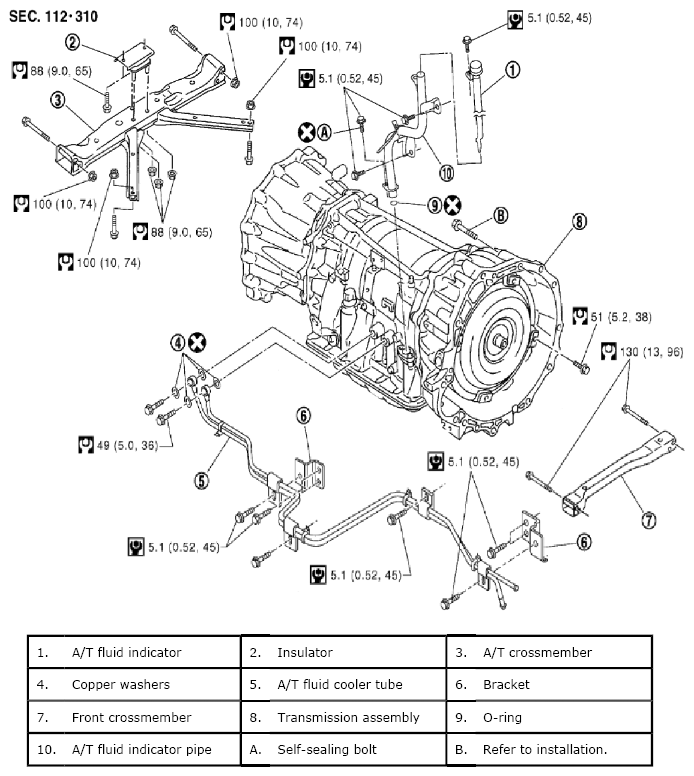

Fig 2: Exploded View Of Transmission Assembly (VQ40DE 2WD Models)
Courtesy of SUZUKI OF AMERICA CORP.

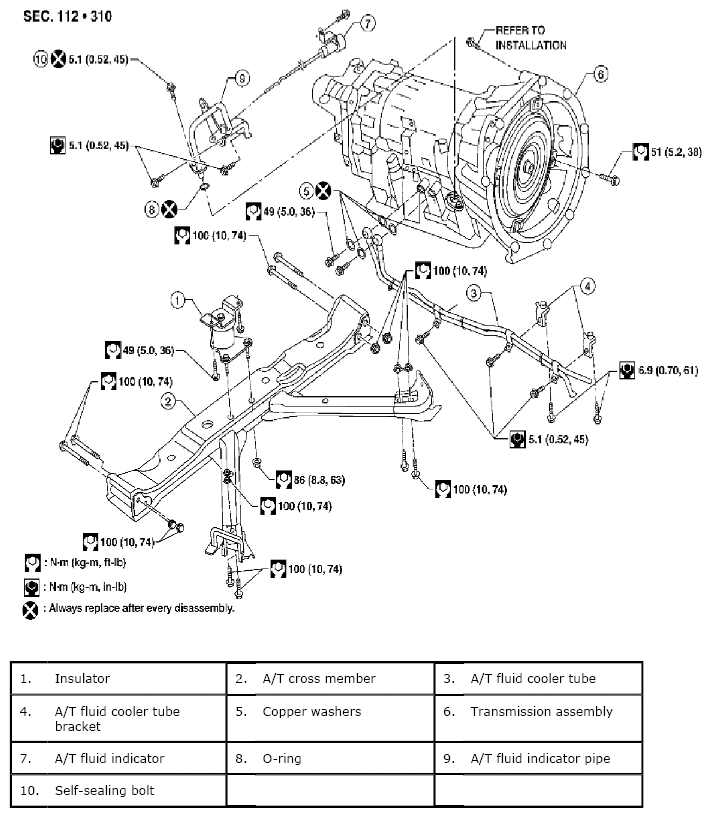

Fig 3: Exploded View Of Transmission Assembly (VQ40DE 4WD Models)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
