Electronic Stability Program Wiring Circuit Diagram: Notes

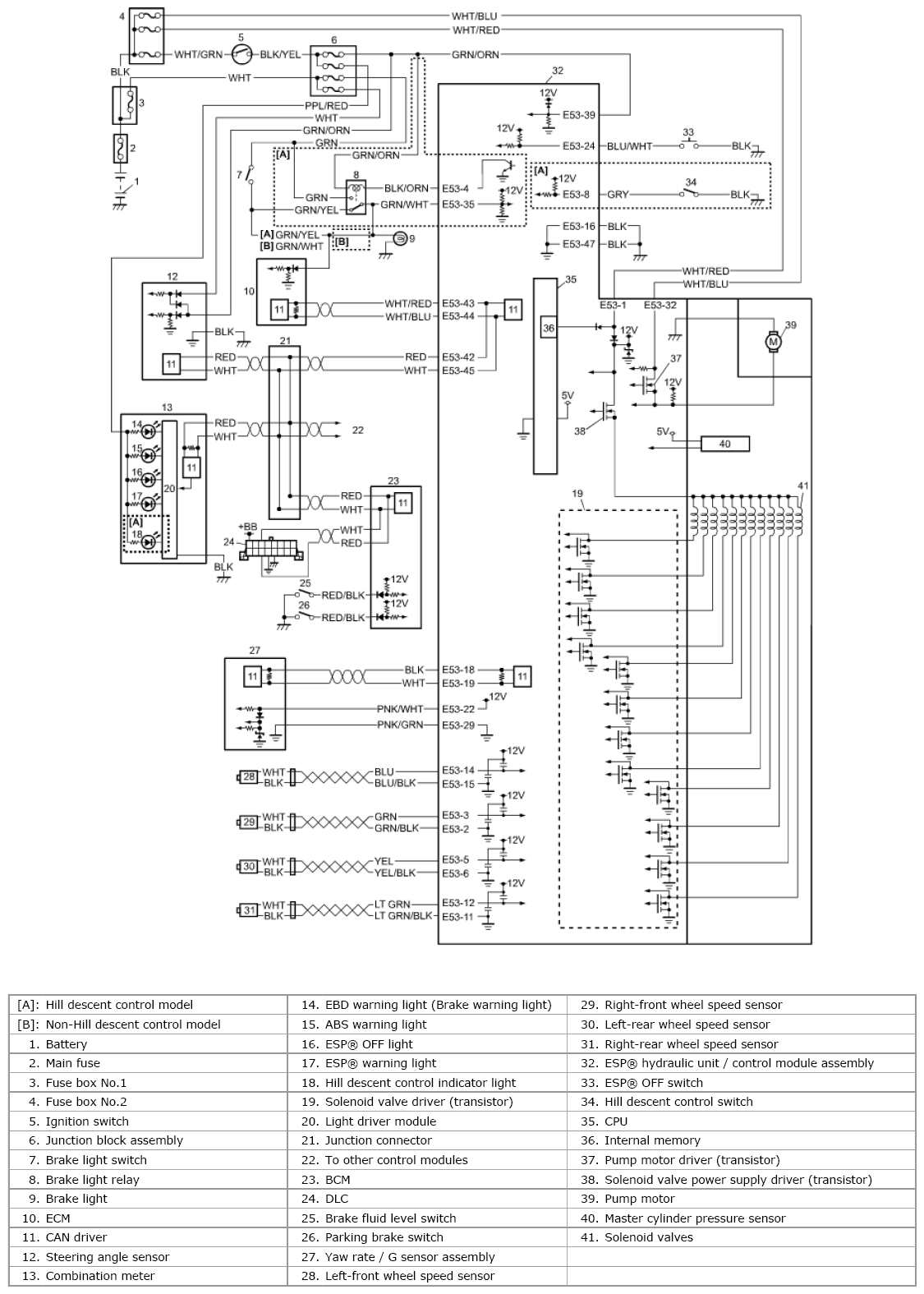

Fig 1: Electronic Stability Program - Circuit Diagram
G08895808Courtesy of SUZUKI OF AMERICA CORP.
