Generator Components

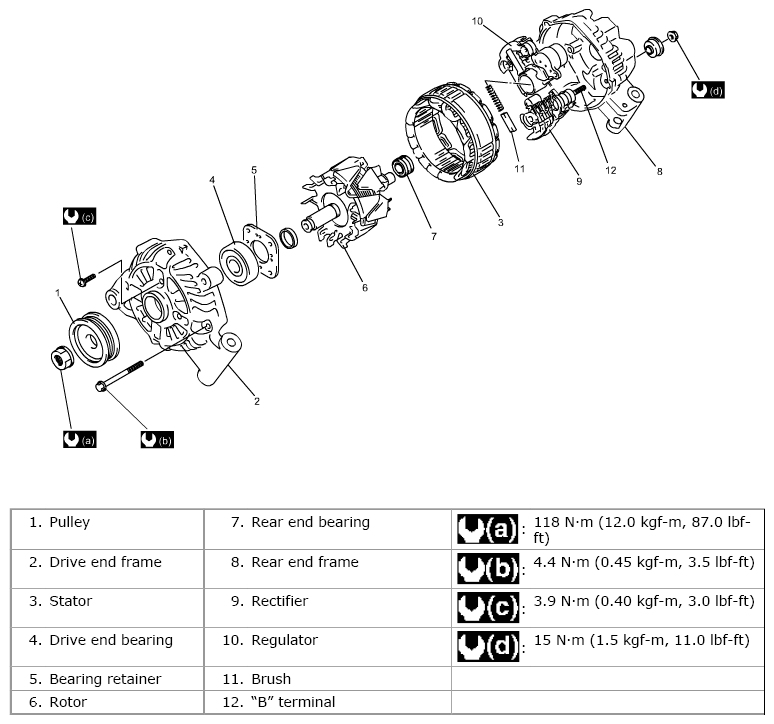

Fig 1: Exploded View Of Generator
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
