Generator Removal and Installation: Installation

Reference: GENERATOR COMPONENTS

Reference: GENERATOR INSPECTION

Reverse removal procedure noting the following point.

• Tighten generator bolt and "B" terminal wire nut to specified torque.

Tightening torque

Generator bolt (b): 55 N.m (5.6 kgf-m, 40.5 lbf-ft)

"B" terminal wire nut (a): 11 N.m (1.1 kgf-m, 8.5 lbf-ft)

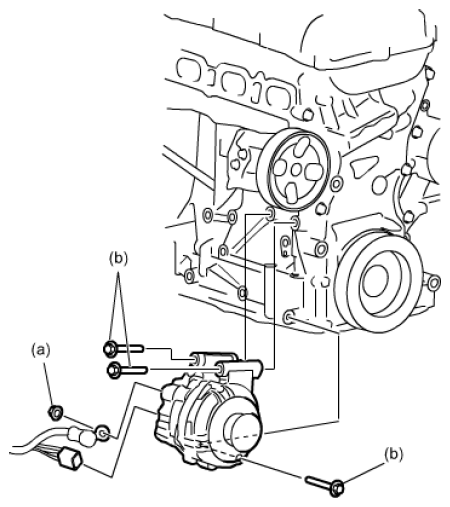

Fig 1: Identifying Generator Bolt And "B" Terminal Wire Nut

Courtesy of SUZUKI OF AMERICA CORP.
