ECM (Engine Control Module) Removal and Installation: Installation

Reverse removal procedure noting the following.

• Connect connectors to ECM as follows.

1. Make sure that lock lever of ECM connector is in unlock position.

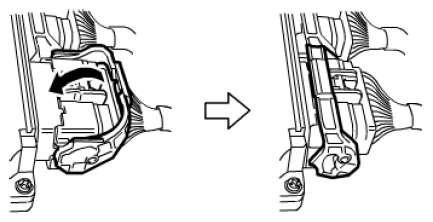

   Fig 1: Connecting Connectors To ECM

   Courtesy of SUZUKI OF AMERICA CORP.
2. Insert ECM connectors to ECM until it stops.
   Fig 2: Inserting ECM Connectors To ECM

   Courtesy of SUZUKI OF AMERICA CORP.
3. Lock ECM connectors securely by setting their lock levers in their locked position.
   Fig 3: Locking ECM Connectors

   Courtesy of SUZUKI OF AMERICA CORP.
