Sub Fuel Level Sensor

Reference: SUB FUEL LEVEL SENSOR REMOVAL AND INSTALLATION

Check resistance between terminals (1) and (2) at each float position [a], [b] and [c]. If measured resistance is out of specification, replace sub fuel level sensor.

Sub fuel level sensor resistance

SUB FUEL LEVEL SENSOR RESISTANCE SPECIFICATIONS

Float position		Resistance
[a]	55.8 mm (2.20 in.)	19.0 - 21.0 Ω
[b]	161.1 mm (6.343 in)	102.8 - 112.8 Ω
[c]	239.9 mm (9.445 in)	146.8 - 150.2 Ω

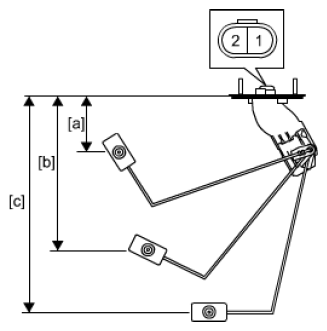

Fig 1: Checking Resistance Between Terminals At Each Float Locations

Courtesy of SUZUKI OF AMERICA CORP.
