Ignition System Component Location

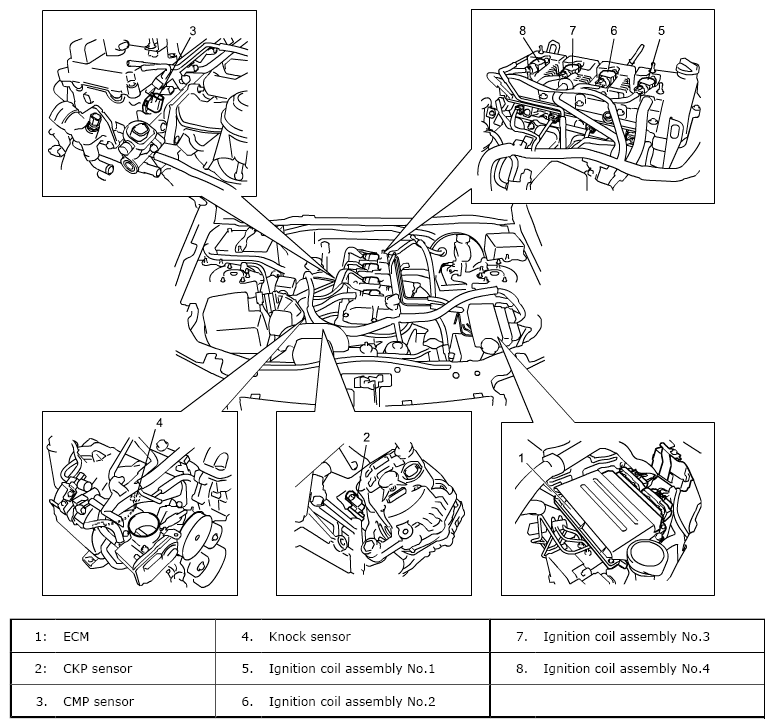

Fig 1: Ignition System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
