EVAP Leak Check Module Removal and Installation: Installation

For installation, reverse removal procedure noting the following.

• Apply gasoline to O-ring of EVAP leak check module.
• Tighten EVAP leak check module bolts to specified torque.

  Tightening torque

  EVAP leak check module bolt (a): 5.5 N.m (0.55 kgf-m, 4.0 lbf-ft)

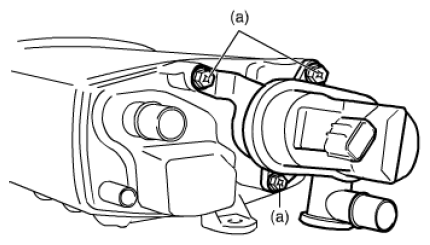

  Fig 1: Identifying EVAP Leak Check Module Bolts

  Courtesy of SUZUKI OF AMERICA CORP.
• Install EVAP canister and EVAP leak check module as an assembly.
