Keyless Entry Key-Pad: Locations

Door, Roof

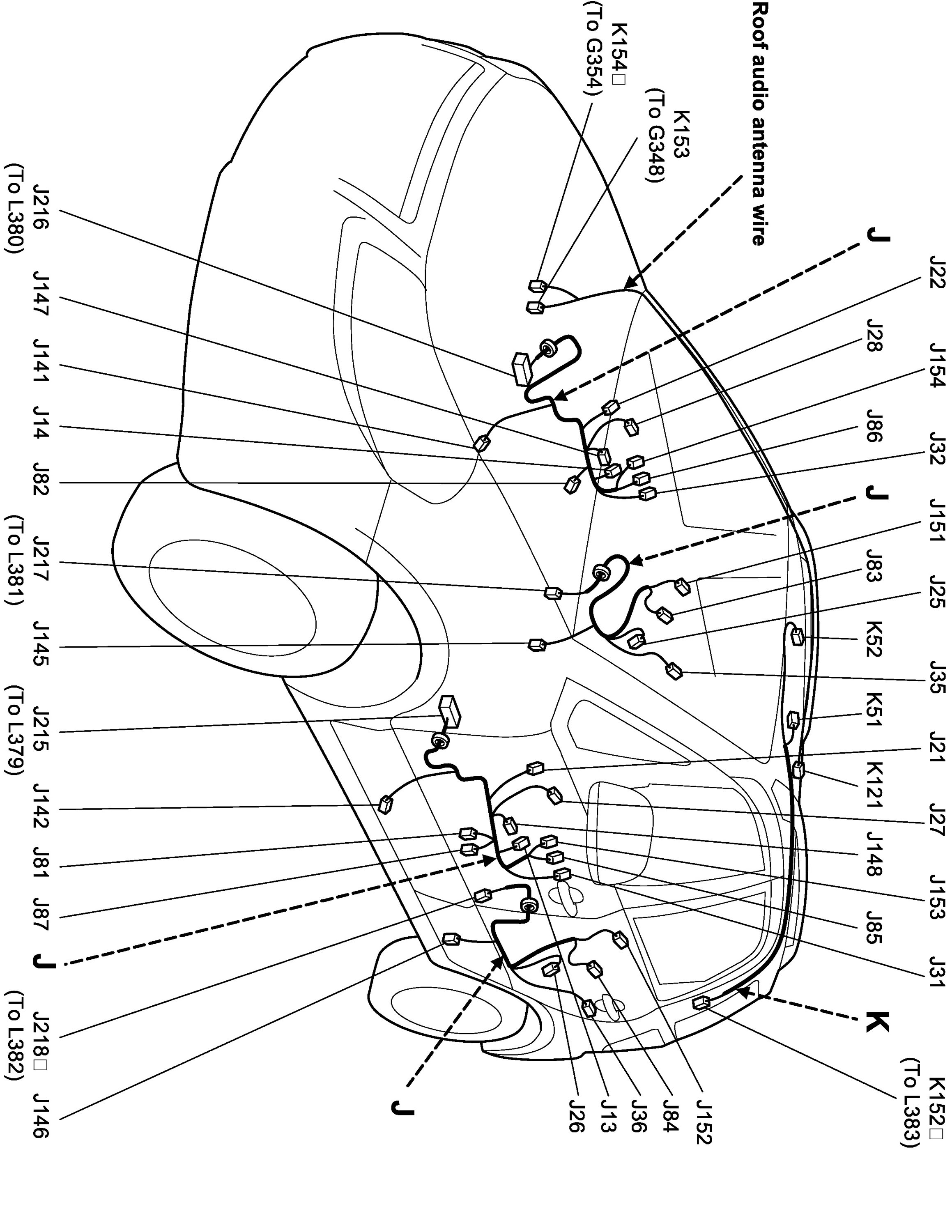

J: Front and Rear Door Wire and Rear Door Wire / K: Roof Wire, Roof Audio Antenna Wire (Hatchback)

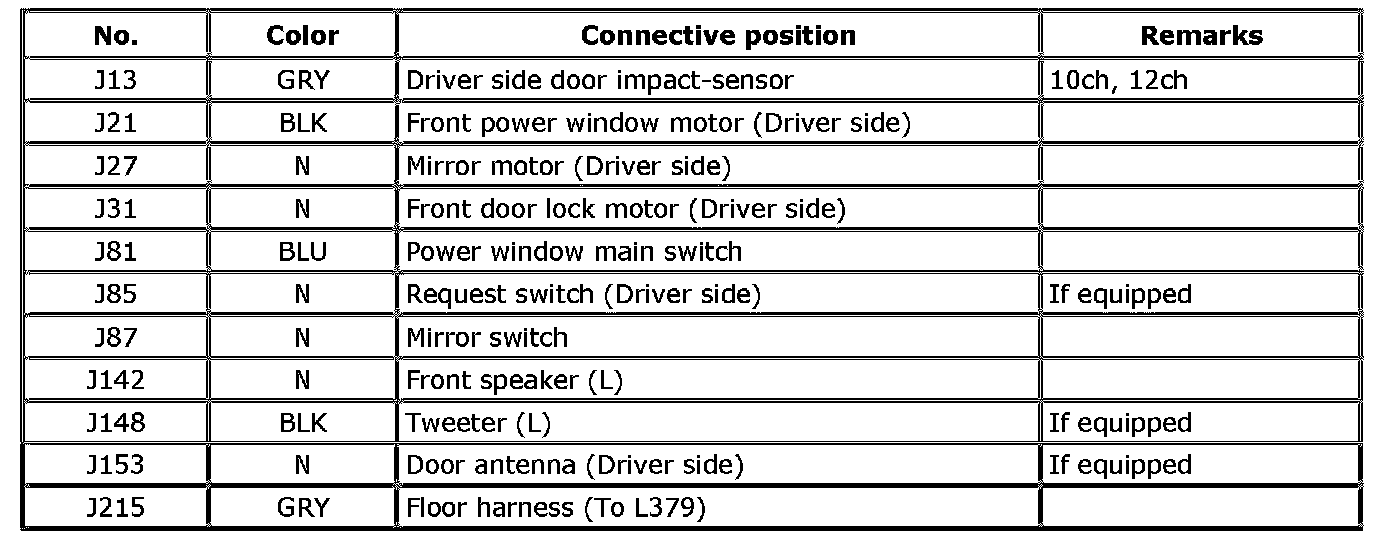

J: Door Harness (Driver Side)

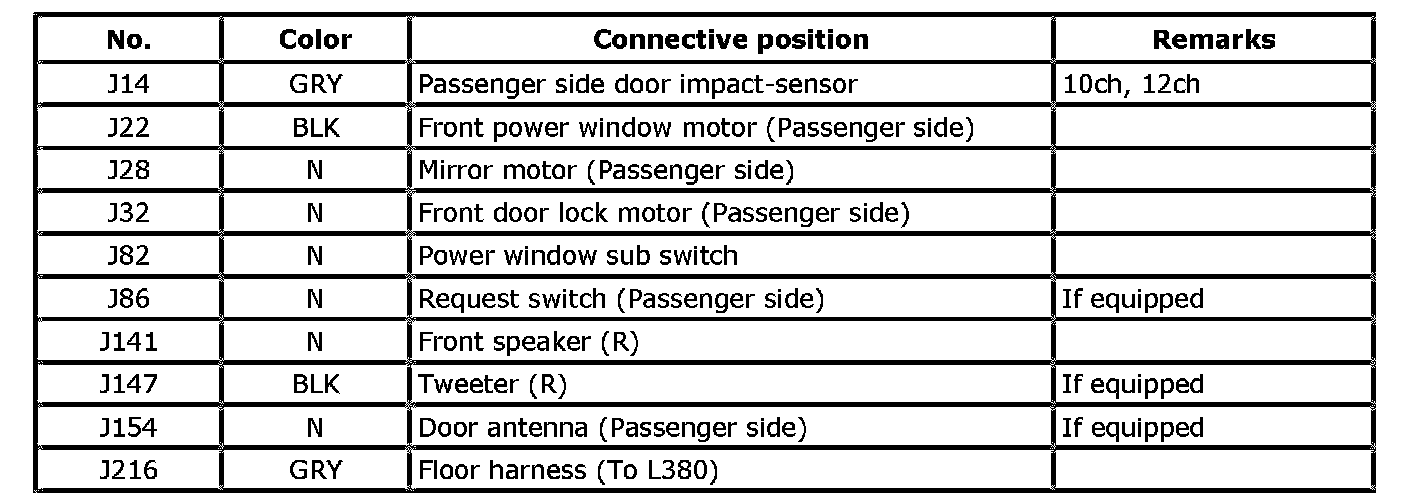

J: Door Harness (Passenger Side)
