Keyless Entry Receiver: Service and Repair

Keyless Entry Receiver Removal and Installation (If Equipped)

Removal

1) Disconnect negative cable at battery.
2) Remove glove box or console box referring to Step 6) of Service and Repair Instrument Panel Removal and Installation
or Diagrams Console Box Components.
3) Disconnect keyless entry receiver coupler.

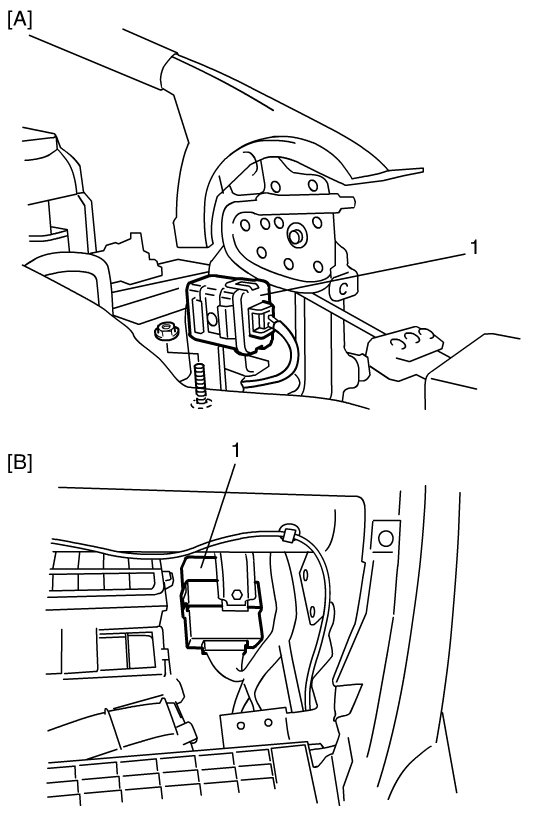

4) Remove keyless entry receiver (1).











Installation

Reverse removal procedure.
