Keyless Start Antenna: Testing and Inspection

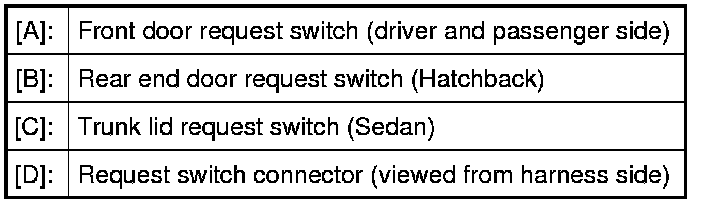

Front Door (Driver and Passenger Side), Rear End Door / Trunk Lid Request Switch Inspection

1) Remove front door trim, rear end door trim or trunk lid trim.
2) Disconnect request switch connector.

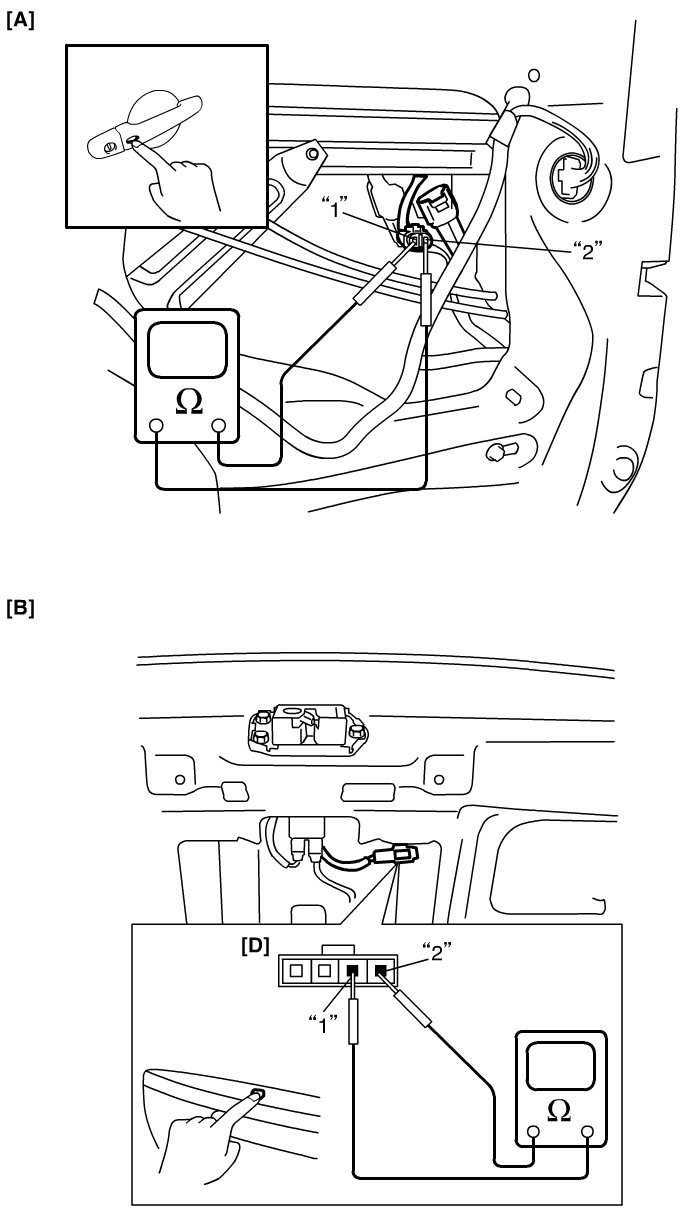

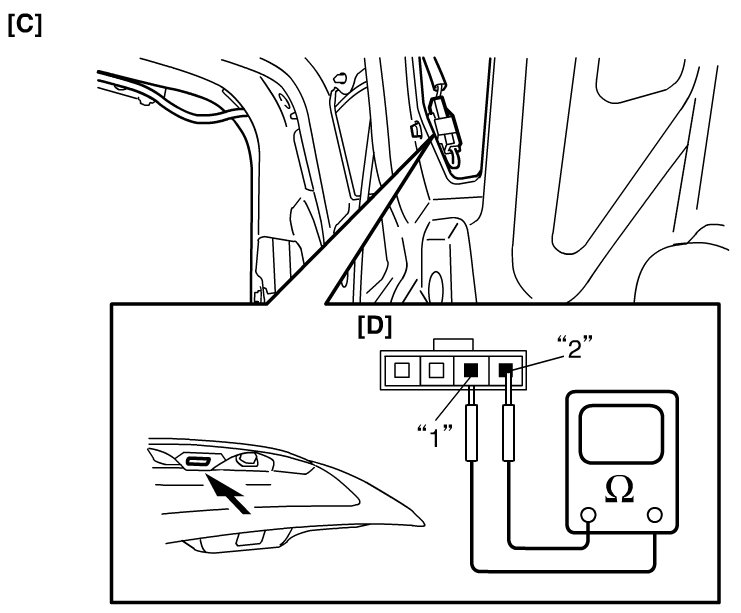

3) Check for continuity between terminals "1" and "2" at each switch position as shown below. If check result is not as specified, replace.

Request switch specification
ON position (request switch pushed): Continuity
OFF position (request switch released): No continuity
