Front Door Lock Switch Inspection (Keyless Start System)

Front Door Lock Switch Inspection

1) Remove door trim from door panel referring to Step 1) to 3) of Front Door Glass Removal and Installation Front Door Glass Removal and Installation.

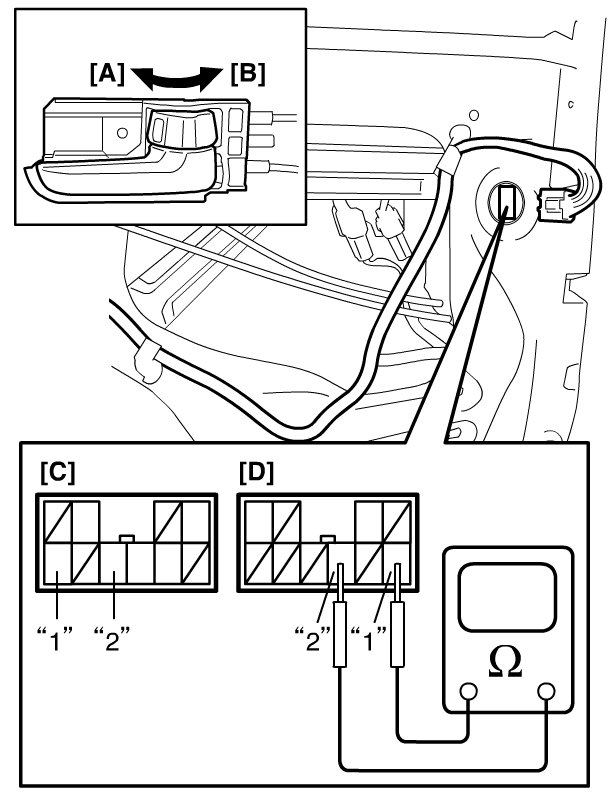

2) Check for continuity between terminals "1" and "2" at each switch position as shown below. If check result is not as specified, replace.

Door lock switch specification
LOCK position: No continuity
UNLOCK position: Continuity
