Auto A/C

Instrument Panel

G: Instrument Panel Harness, Instrument Panel Antenna Wire / S: Connect Coil

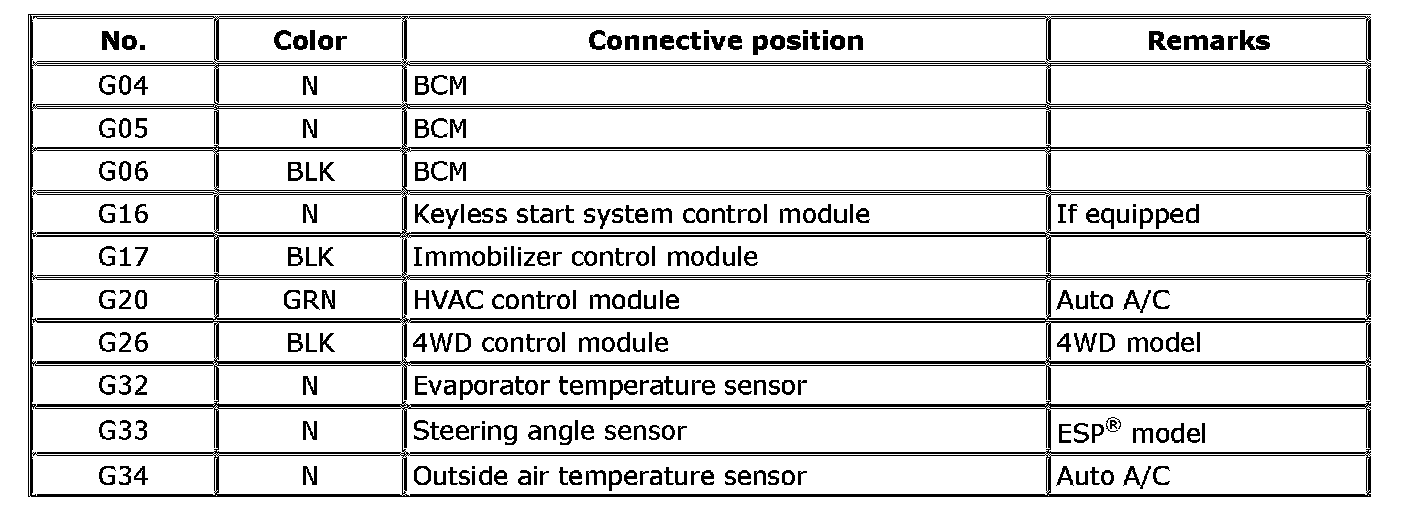

G: Instrument Panel Harness
