Home
>>
Suzuki
>>
2012
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Locations
>>
Electronic Control System Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

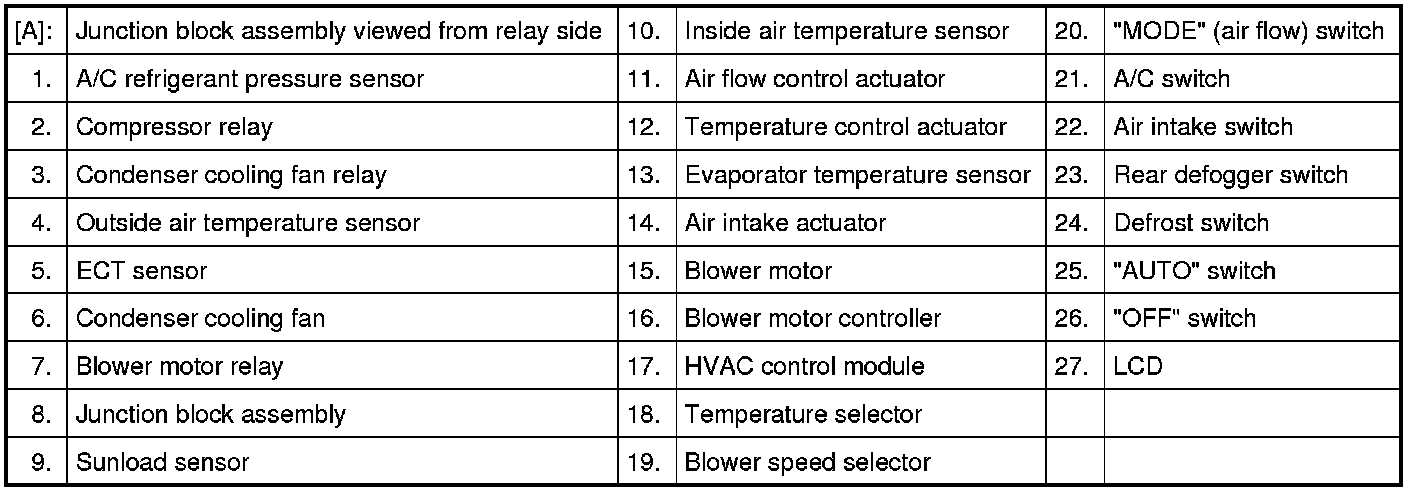

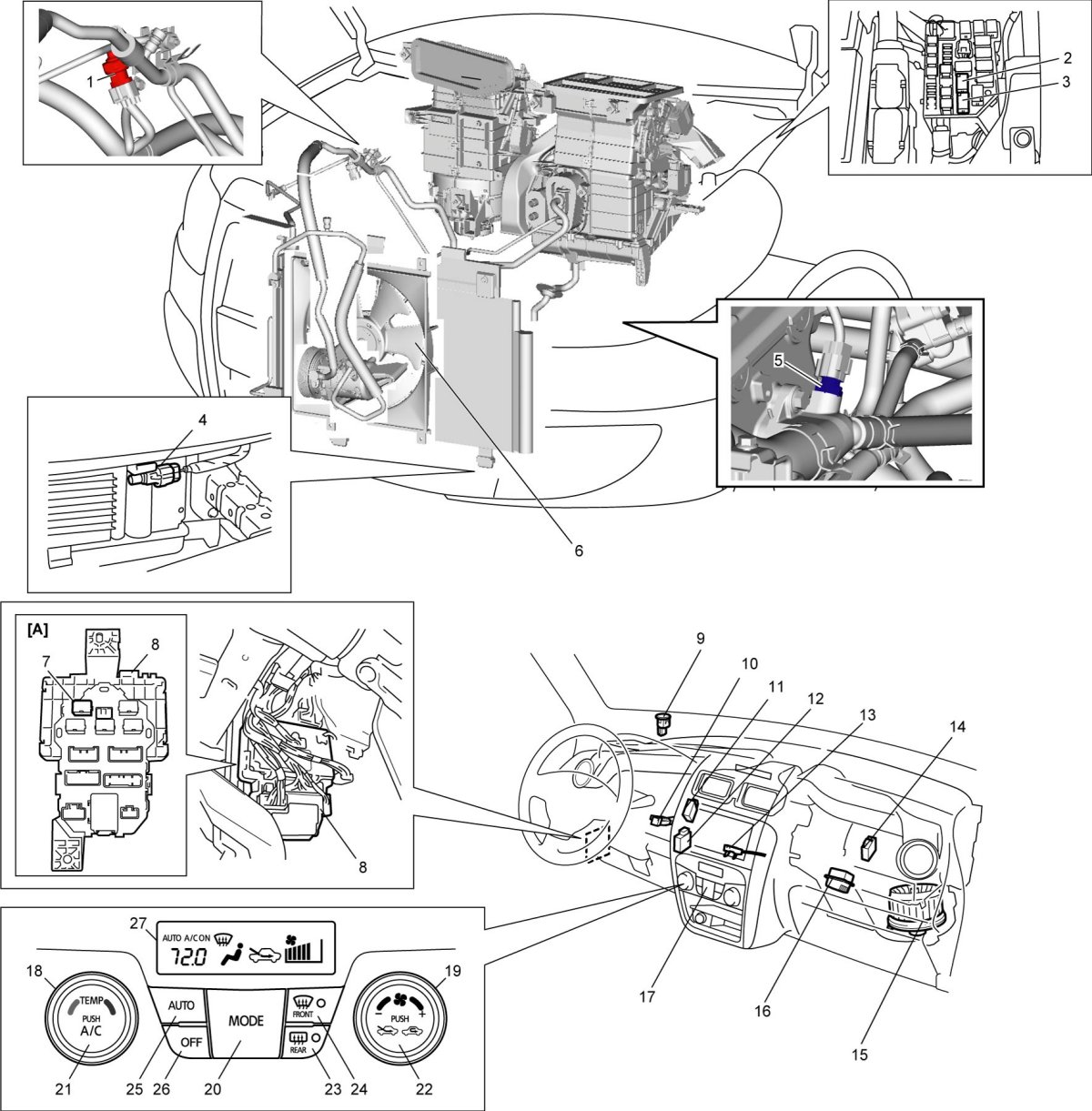

Electronic Control System Component Location
Electronic Control System Component Location
