Floor

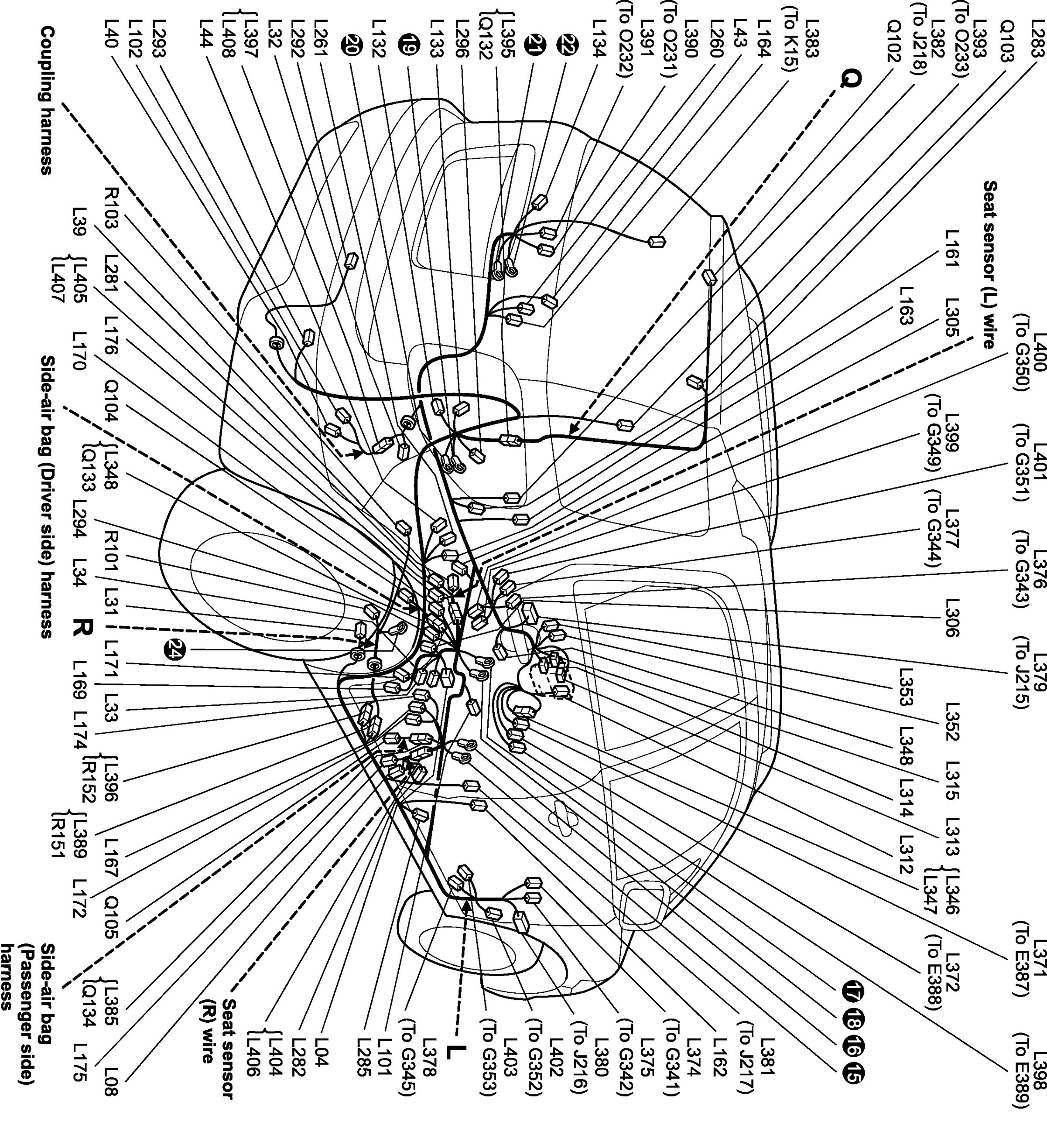

FloorL: Floor Harness, Coupling Harness, Seat Sensor (R) Wire, Seat Sensor (L) Wire / Q: Side Curtain-Air Bag Wire, Side-Air Bag (Driver Side) Harness, Side-Air Bag (Passenger Side) Harness / R: Fuel Pump Wire (Hatchback)
L: Floor Harness
L: Coupling Harness (4WD Model)
L: Seat Sensor (R) Wire
L: Seat Sensor (L) Wire
Q: Side Curtain-Air Bag Wire
Q: Side-Air Bag (Driver Side) Harness
Q: Side-Air Bag (Passenger Side) Harness
R: Fuel Pump Wire

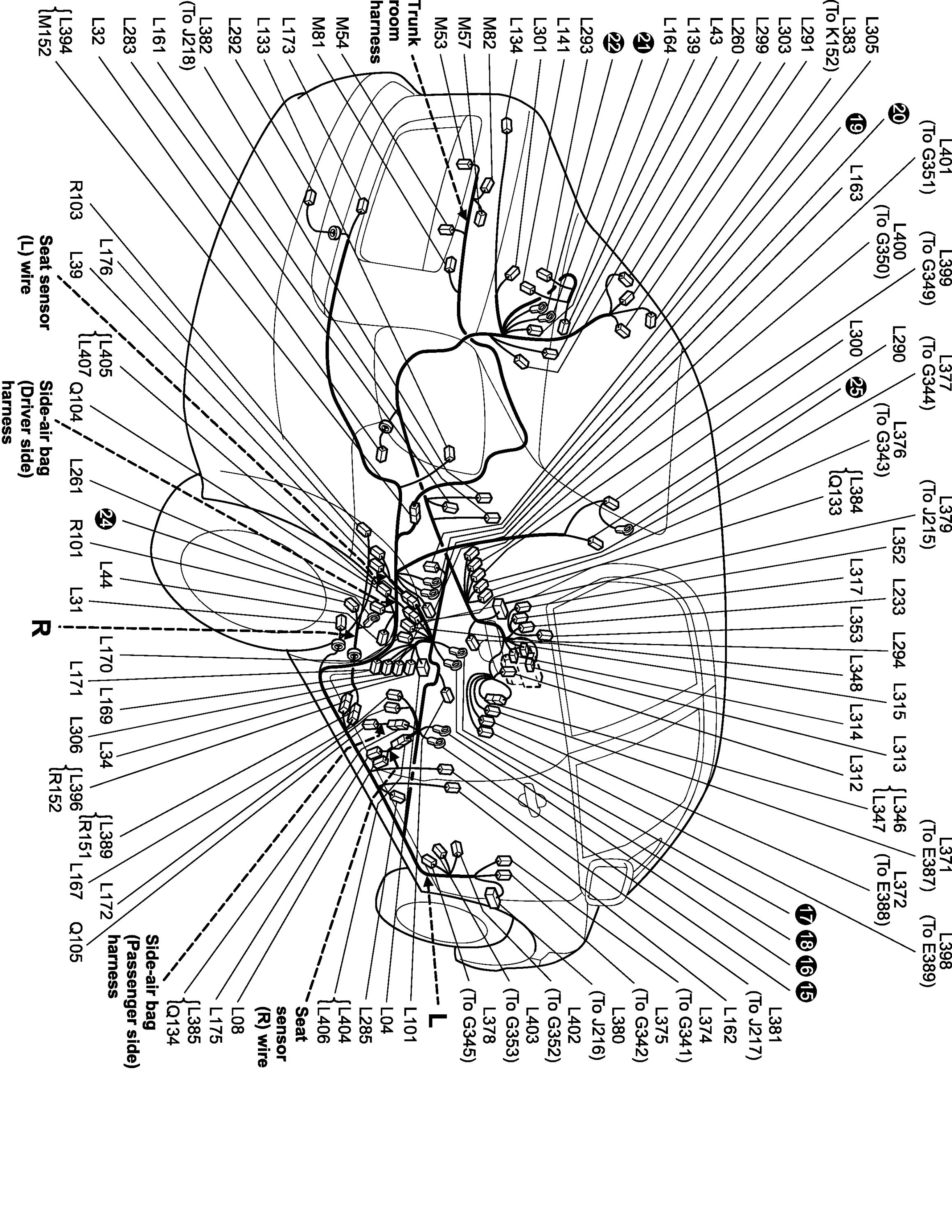

L: Floor Harness, Seat Sensor (R) Wire, Seat Sensor (L) Wire / M: Trunk Room Harness / Q: Side-Air Bag (Driver Side) Harness, Side-Air Bag (Passenger Side) Harness / R: Fuel Pump Wire (Sedan)
L: Floor Harness
L: Seat Sensor (R) Wire
L: Seat Sensor (L) Wire
M: Trunk Room Harness
Q: Side-Air Bag (Driver Side) Harness
Q: Side-Air Bag (Passenger Side) Harness
R: Fuel Pump Wire
