Rear
Rear
O: Rear End Door Harness, High Mounted Stop Light Wire

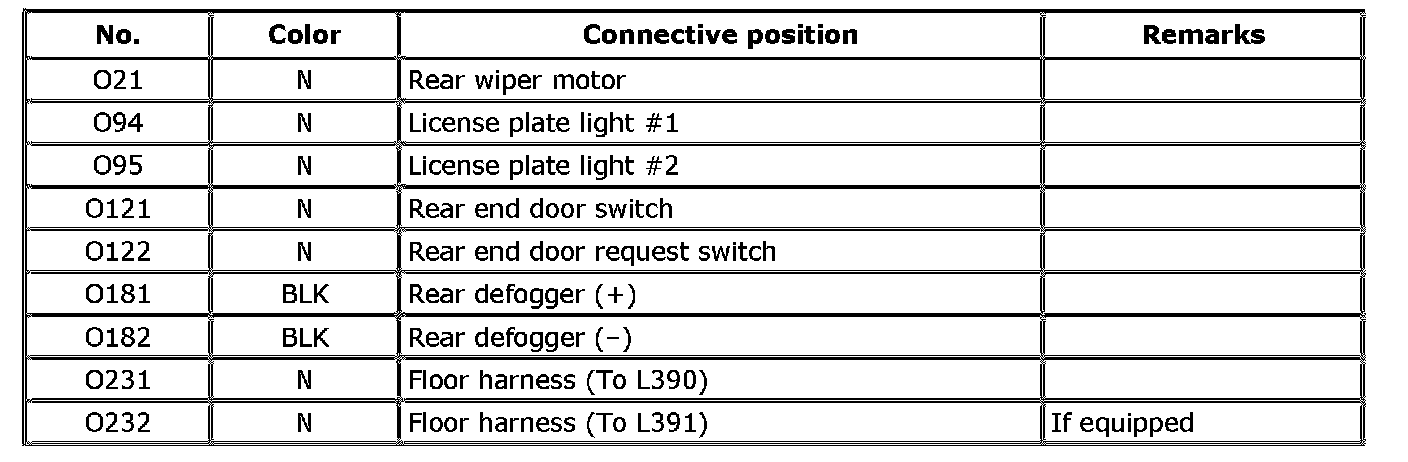

O: Rear End Door Harness

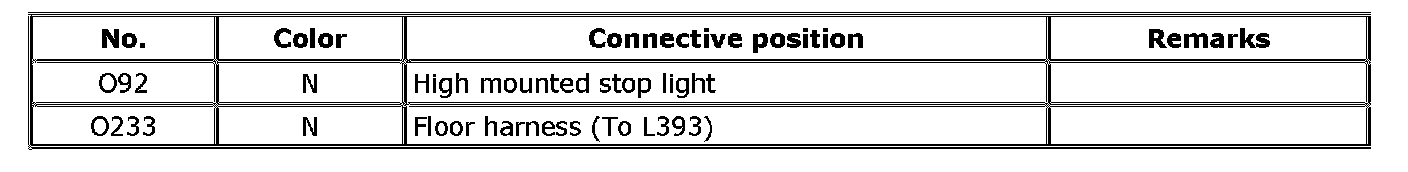

O: High Mounted Stop Light Wire
