Removal and Installation

Mass Air Flow (MAF) & Intake Air Temperature (IAT) Sensor Removal and Installation

Mass Air Flow (MAF) & Intake Air Temperature (IAT) Sensor On-Vehicle Inspection

NOTE:

Failure to take proper precautions when handling the MAF & IAT sensor may lead to malfunction of the sensor.

- Do not disassemble the sensors.
- Do not drop or otherwise expose the sensors to shock. Any MAF & IAT sensor that has been dropped must be replaced.
- Do not clean the sensors.
- Do not direct compressed air from an air gun or the like to the sensor.
- Do not put a finger or any other object into the sensor.

Removal

1) Disconnect negative cable from battery.
2) Disconnect MAF & IAT sensor connector.
3) Remove MAF & IAT sensor (1) from air cleaner case.






Installation

Mass Air Flow (MAF) & Intake Air Temperature (IAT) Sensor Inspection

Reverse removal procedure noting the following.

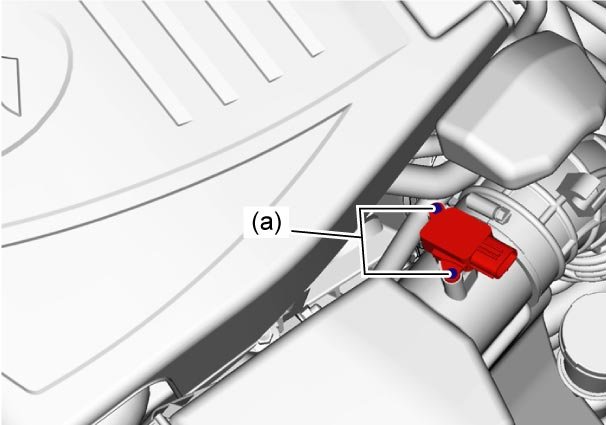

- Tighten MAF & IAT sensor screws to specified torque.

Tightening torque
MAF & IAT sensor screw (a): 1.2 Nm (0.12 kgf-m, 0.9 lbf-ft)
