BCM and Related System Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

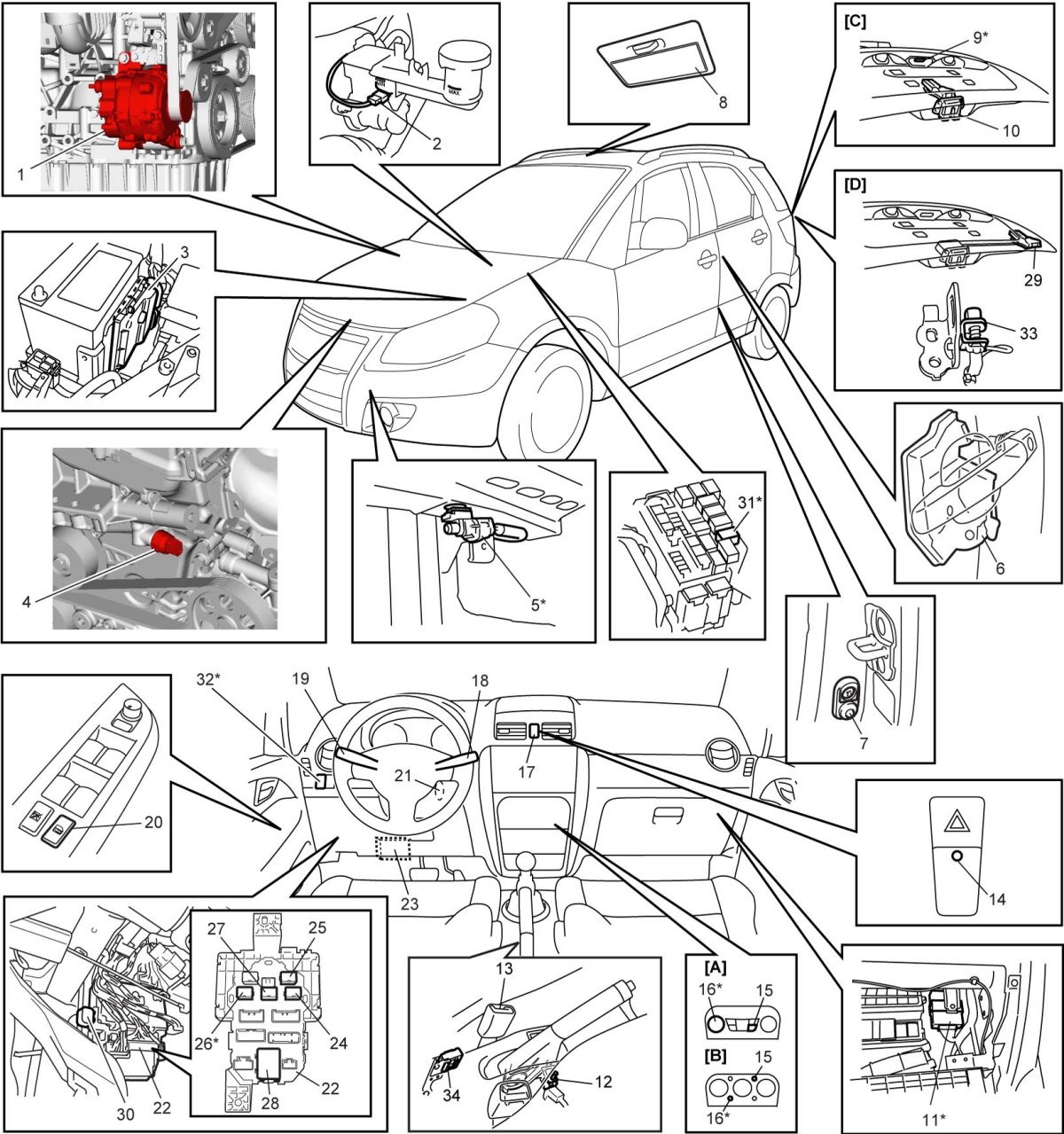

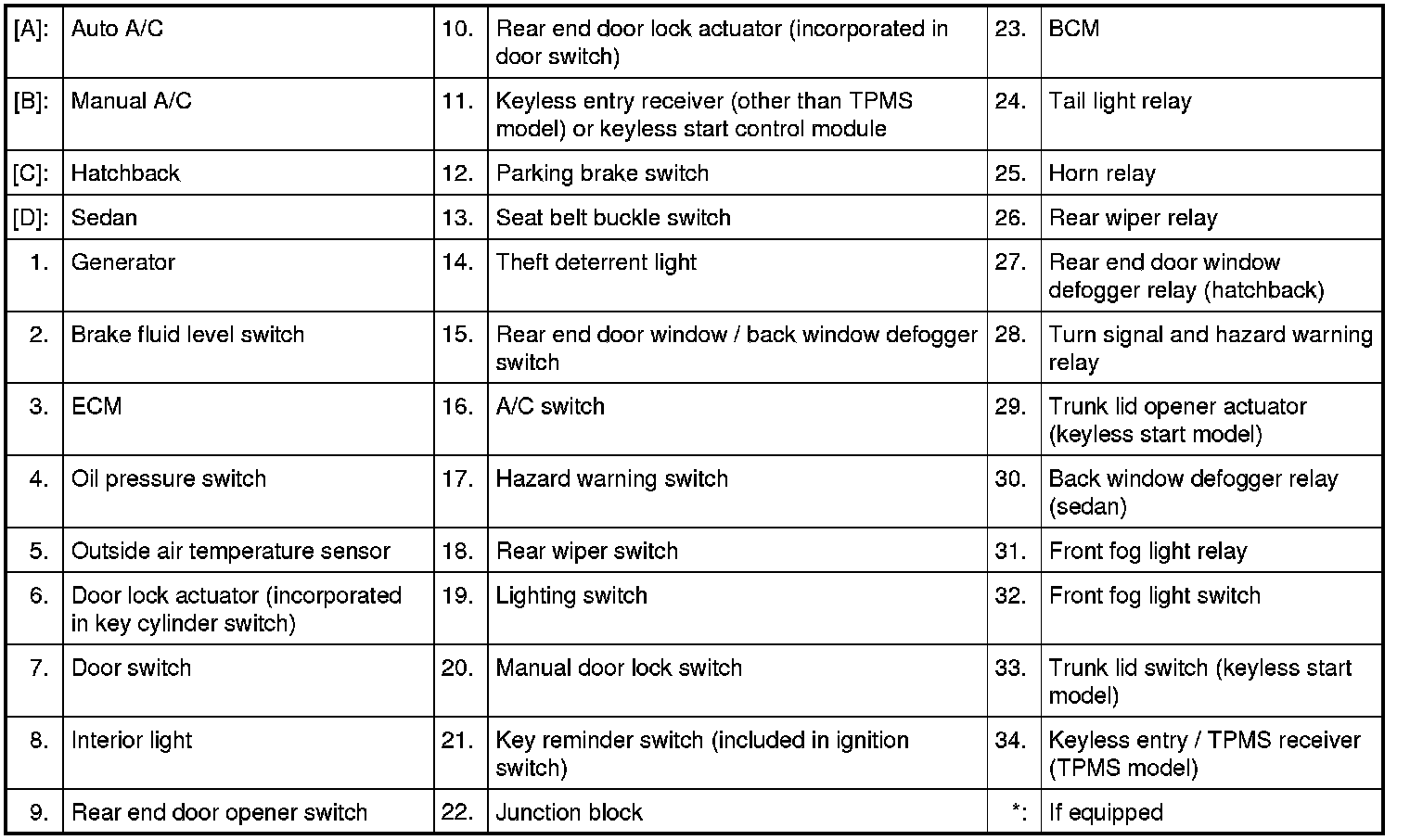

BCM and Related System Component Location
BCM and Related System Component Location
BCM General Description
