Knock Sensor Inspection

Knock Sensor Inspection

Knock Sensor Removal and Installation
1) Disconnect connector (2) from knock sensor.

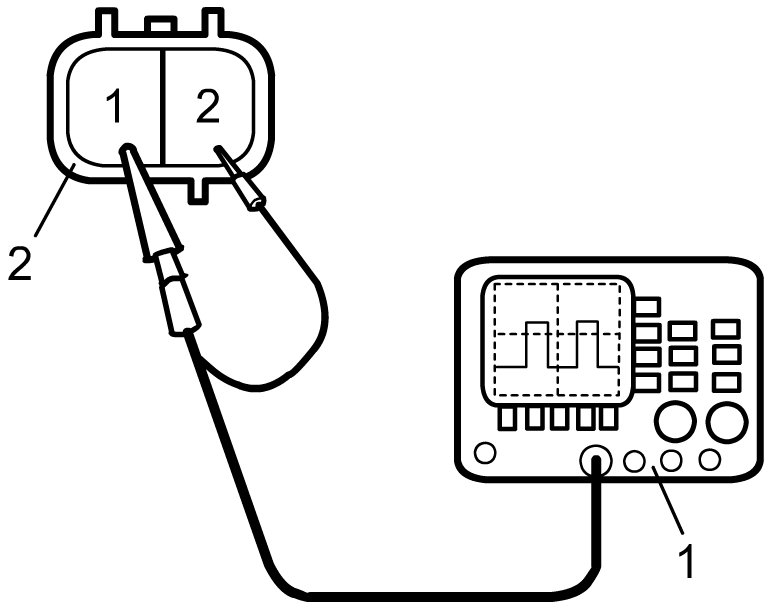

2) Connect oscilloscope (1) as shown in figure.

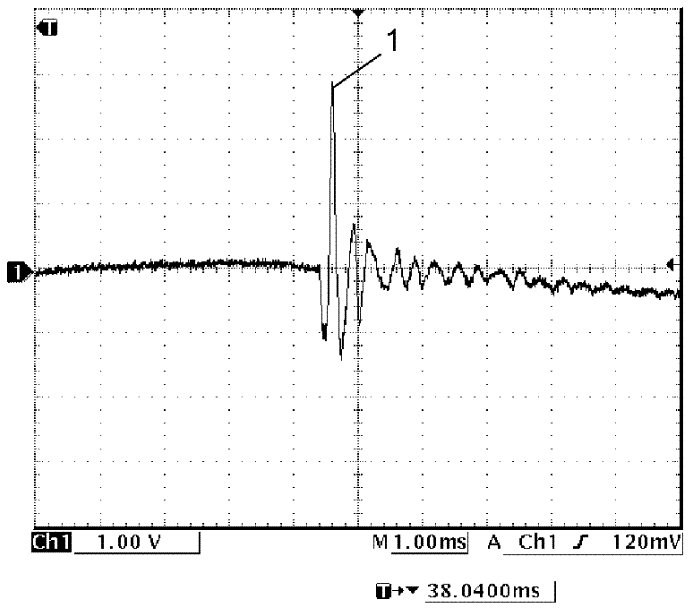

3) Check that knock sensor signal (1) shows the following waveform when cylinder block is given a shock by plastic hammer.

If faulty condition is found, replace knock sensor.
