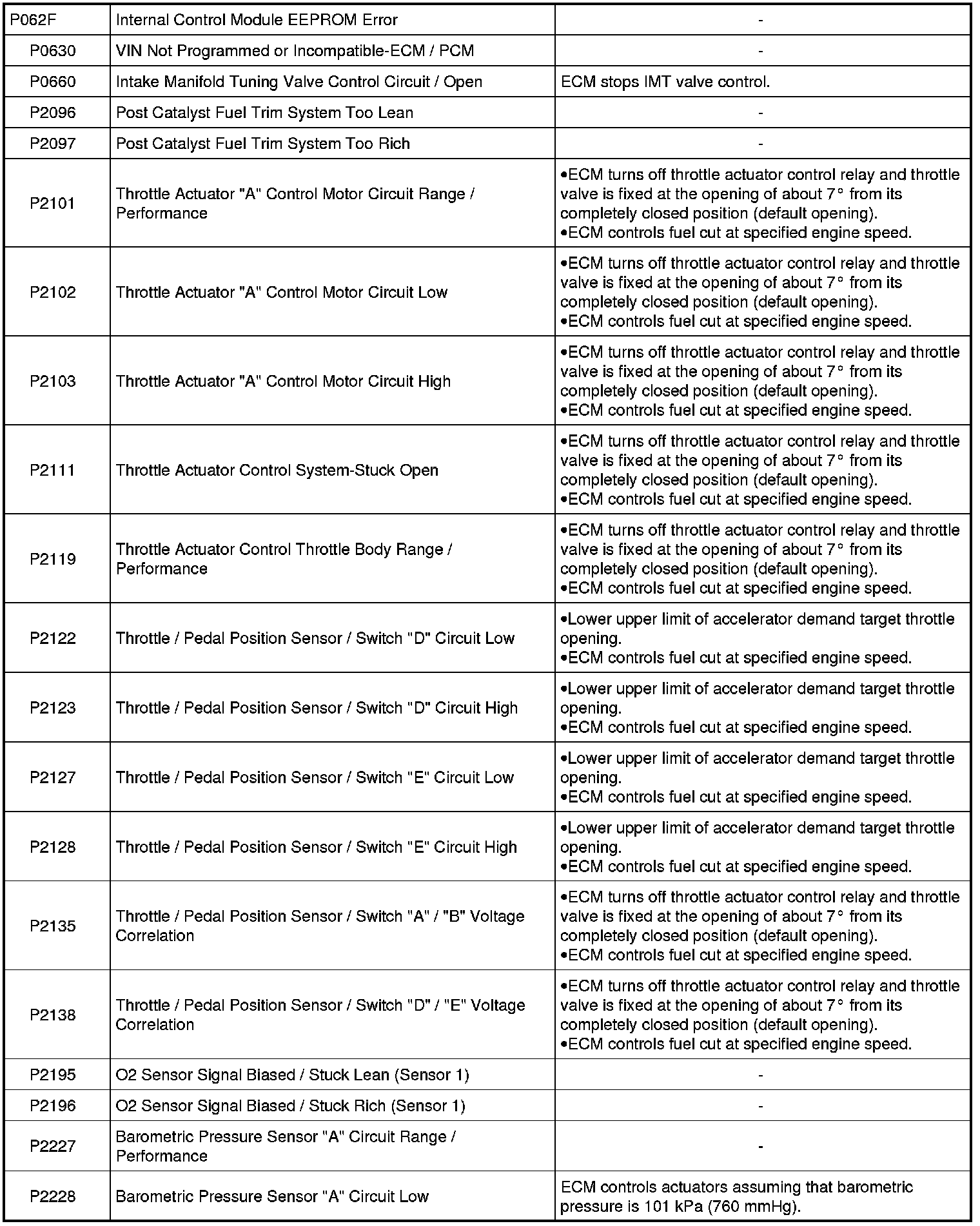

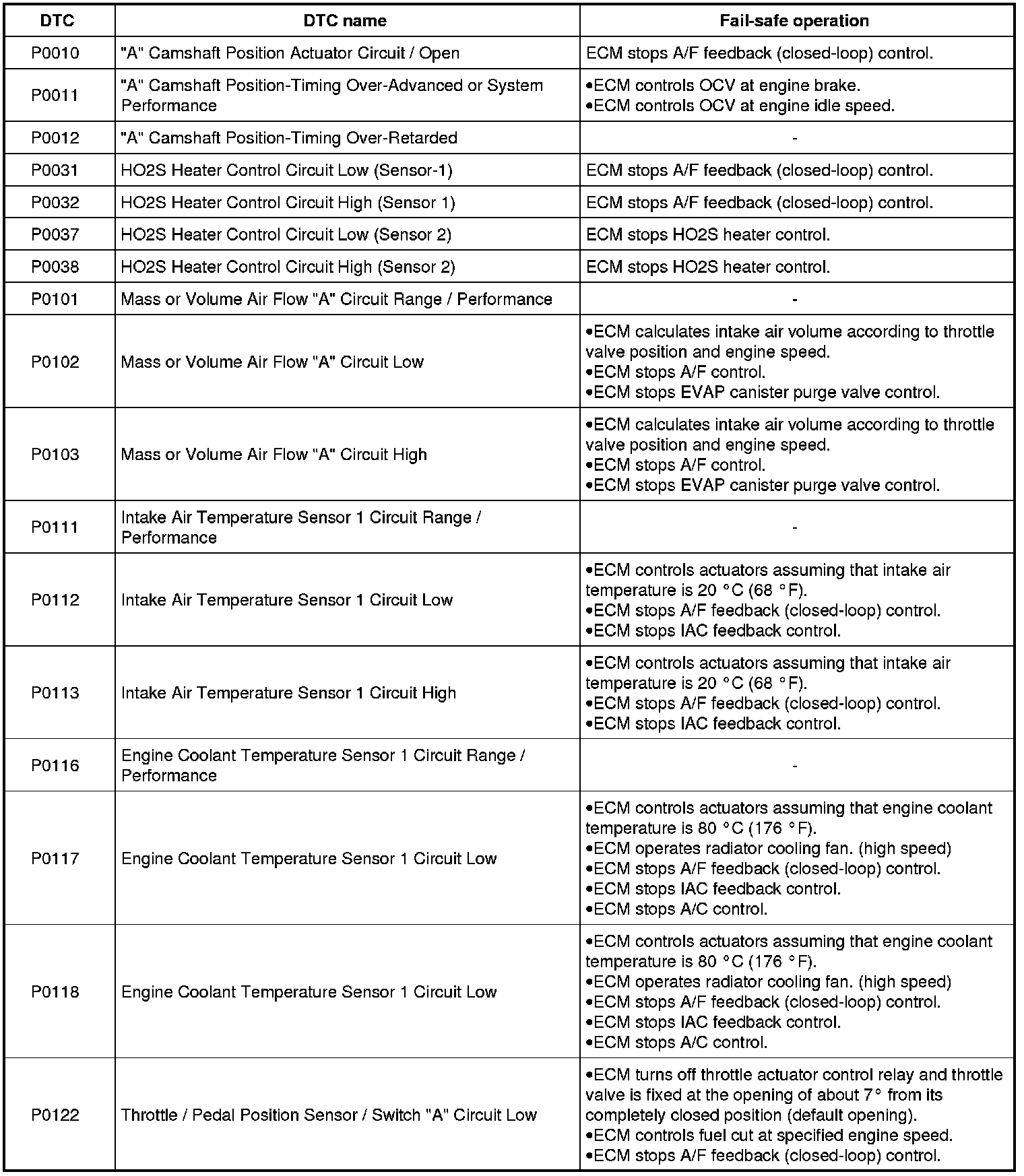

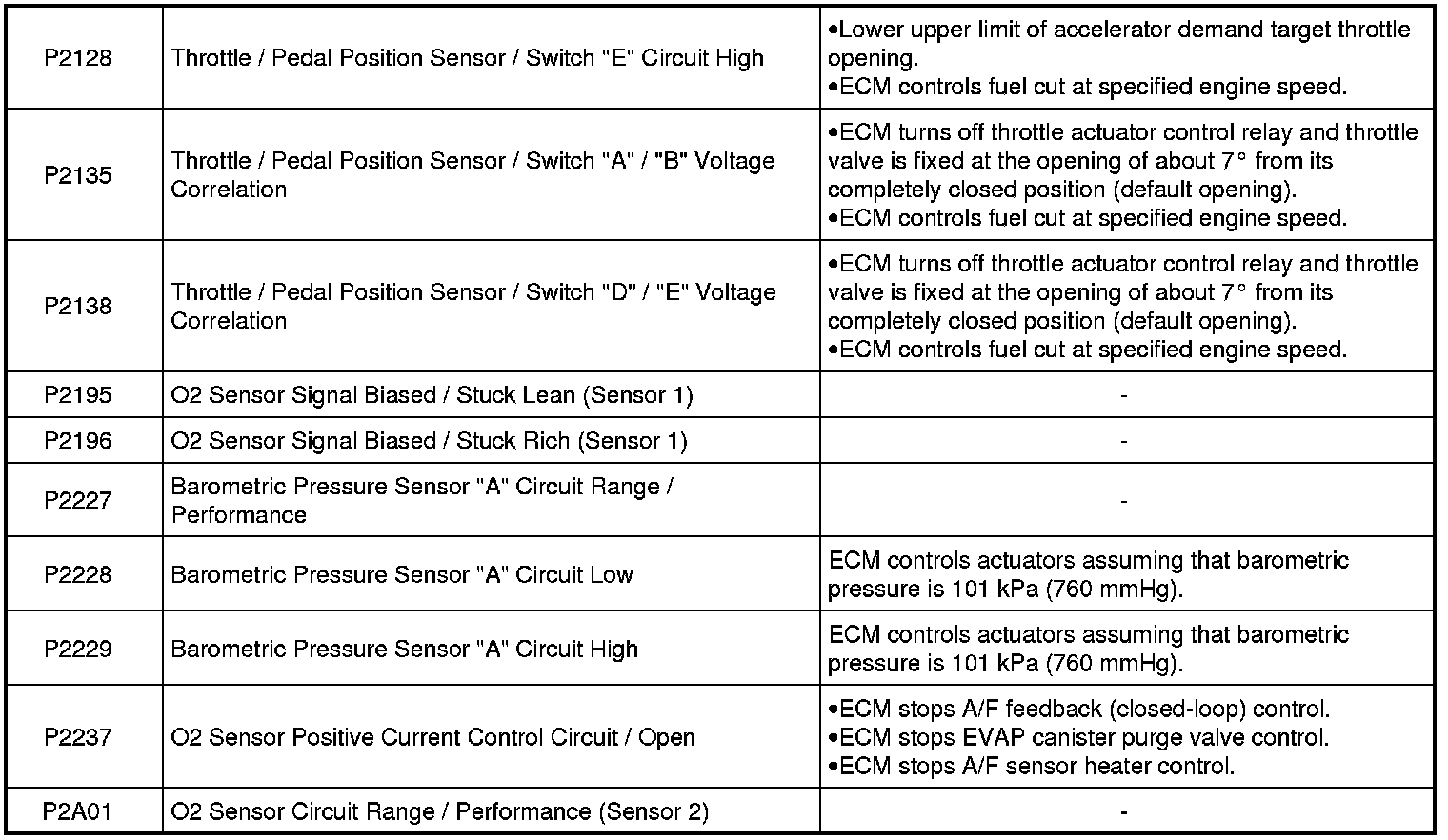

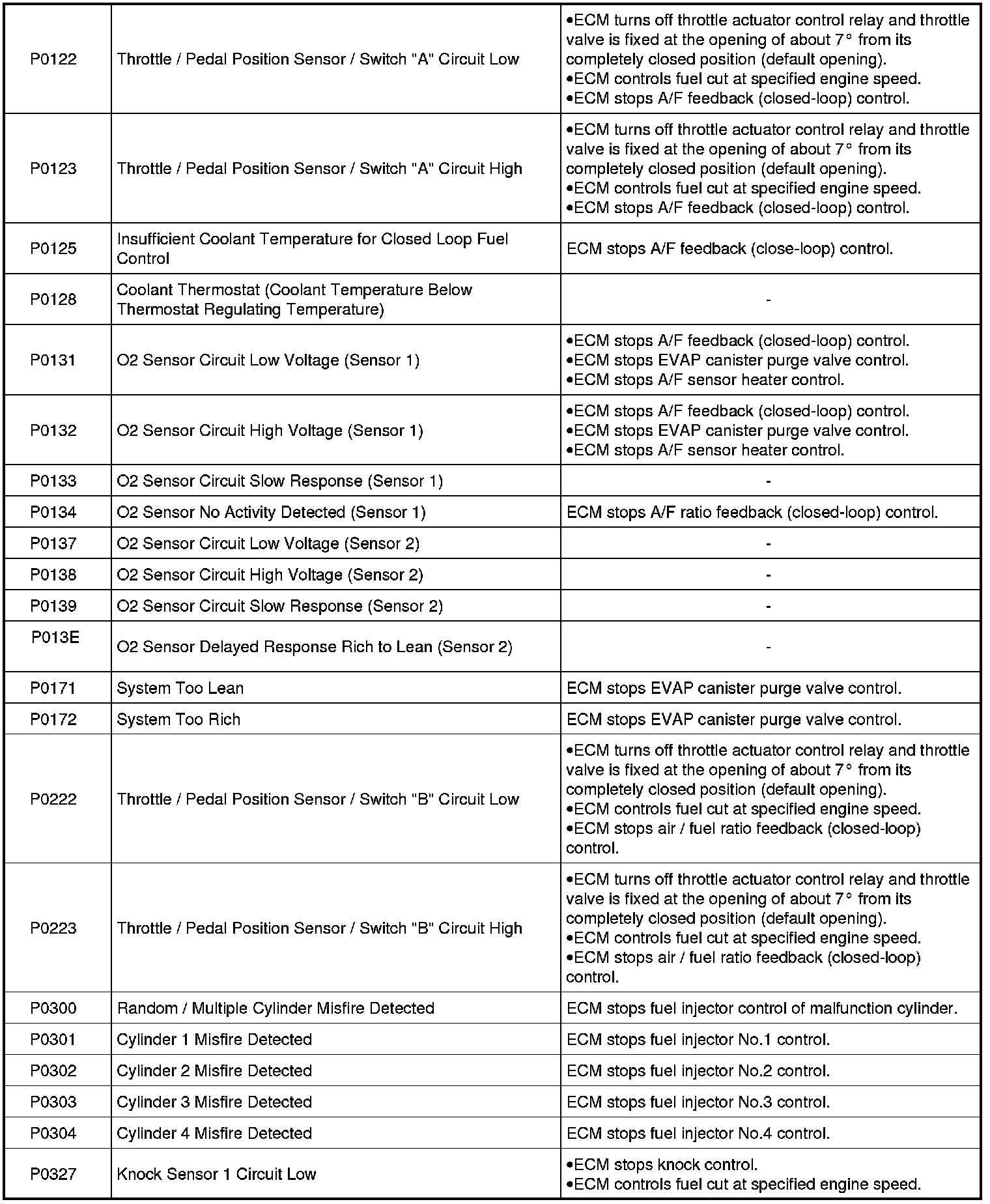

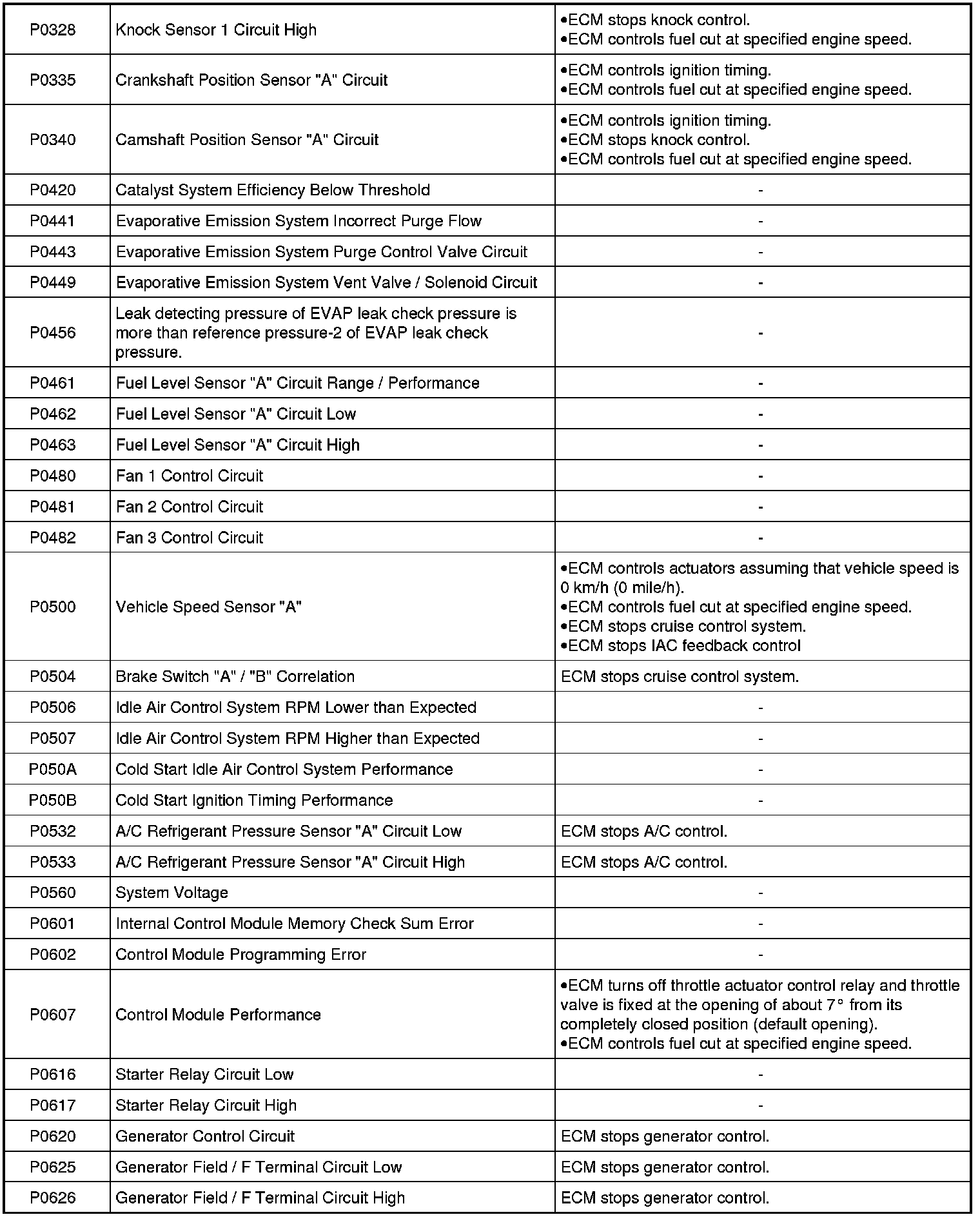

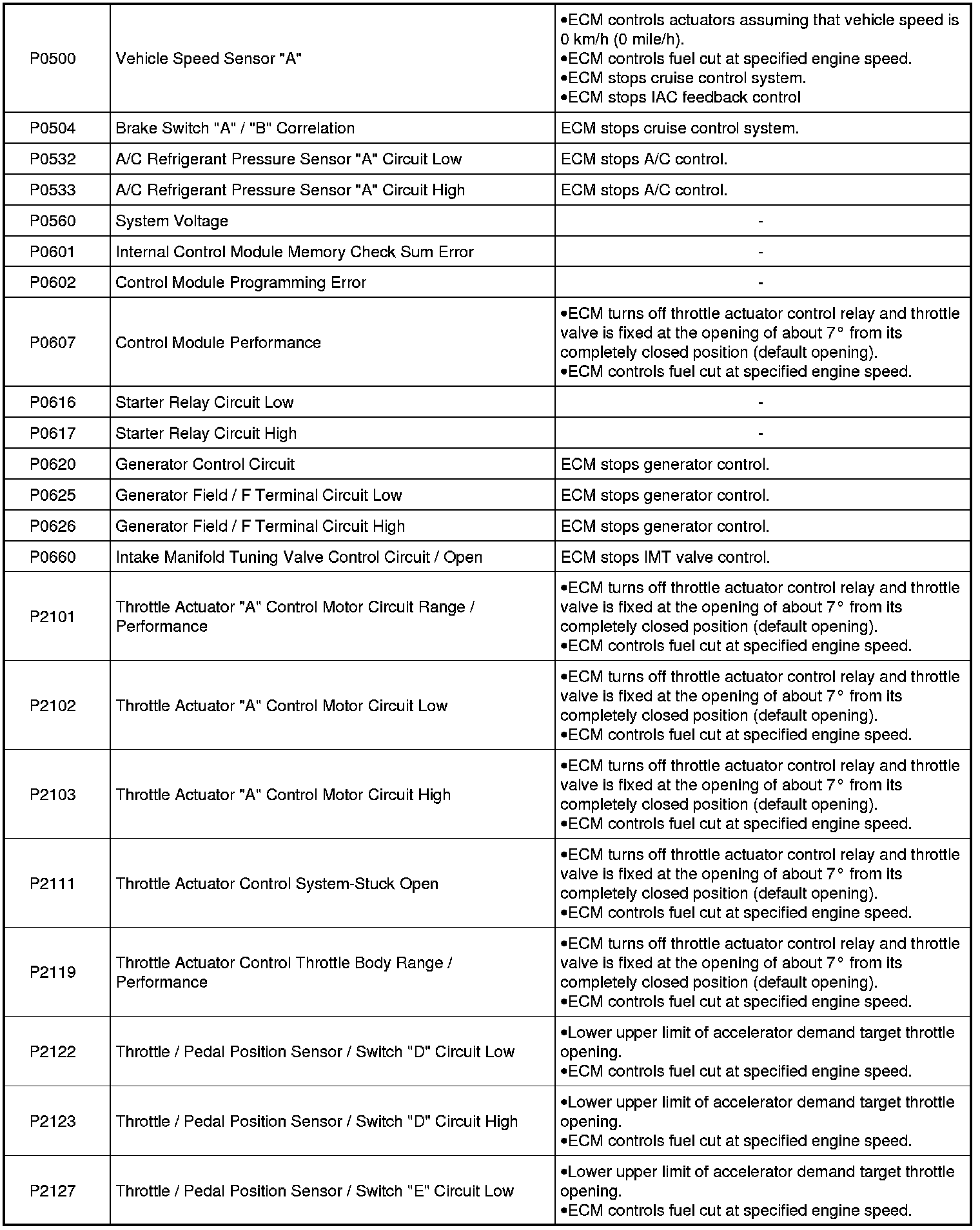

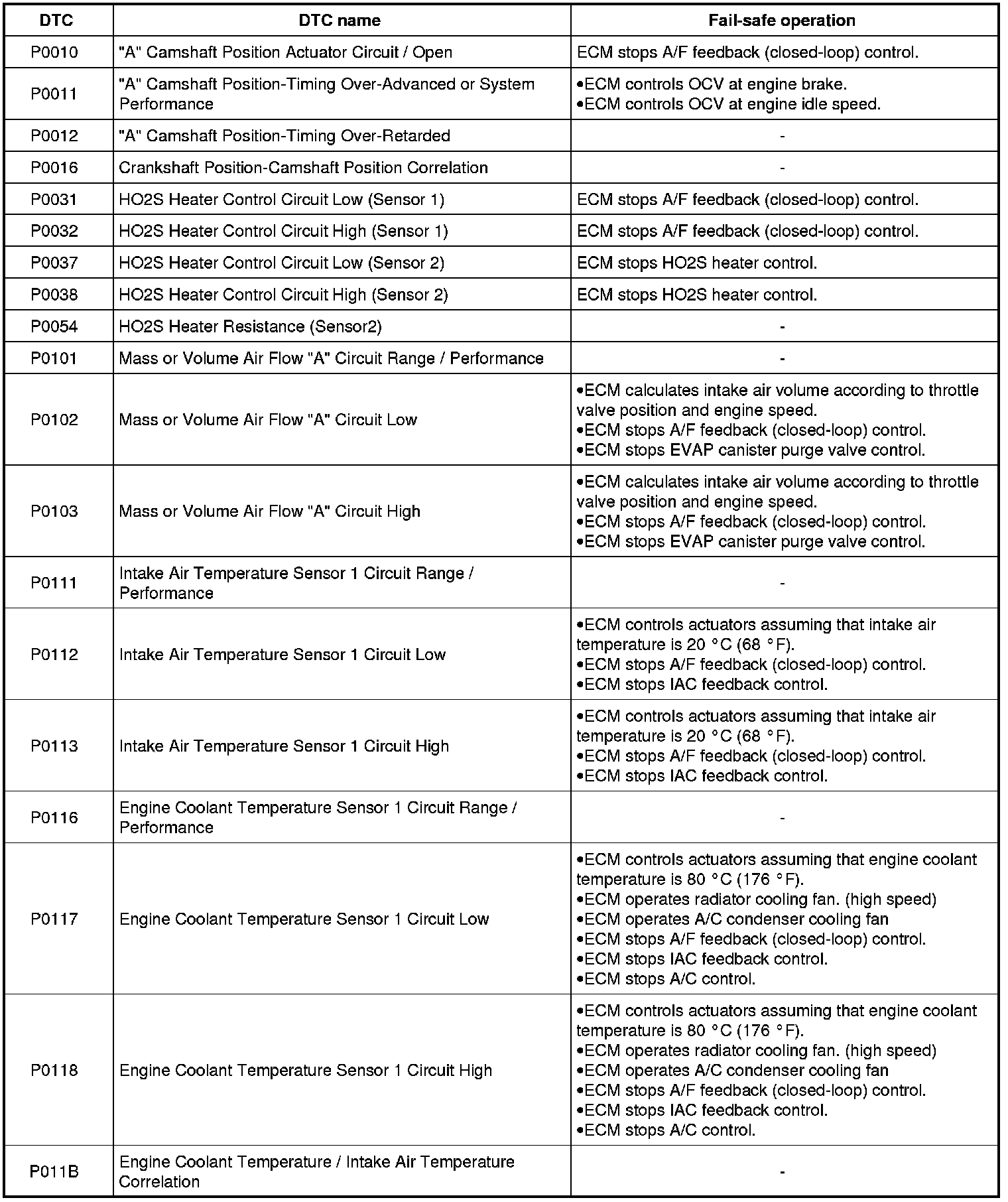

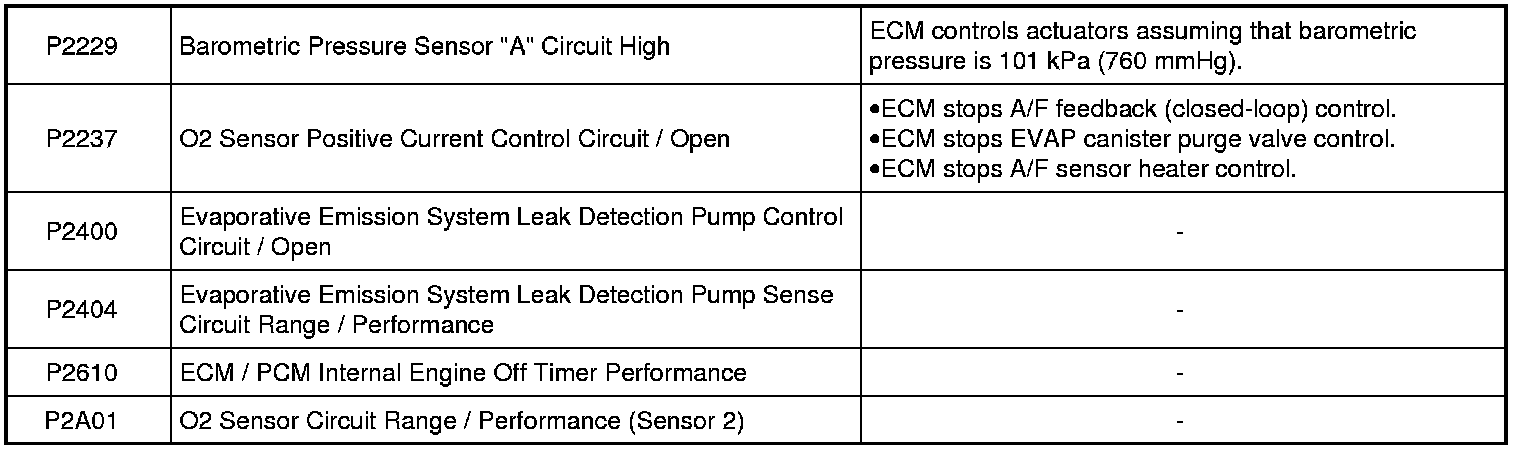

Fail-Safe Table

Fail-Safe Table

NOTE:

For identification of each cylinder, refer to Precautions for Identification of Cylinder Precautions for Identification of Cylinder.

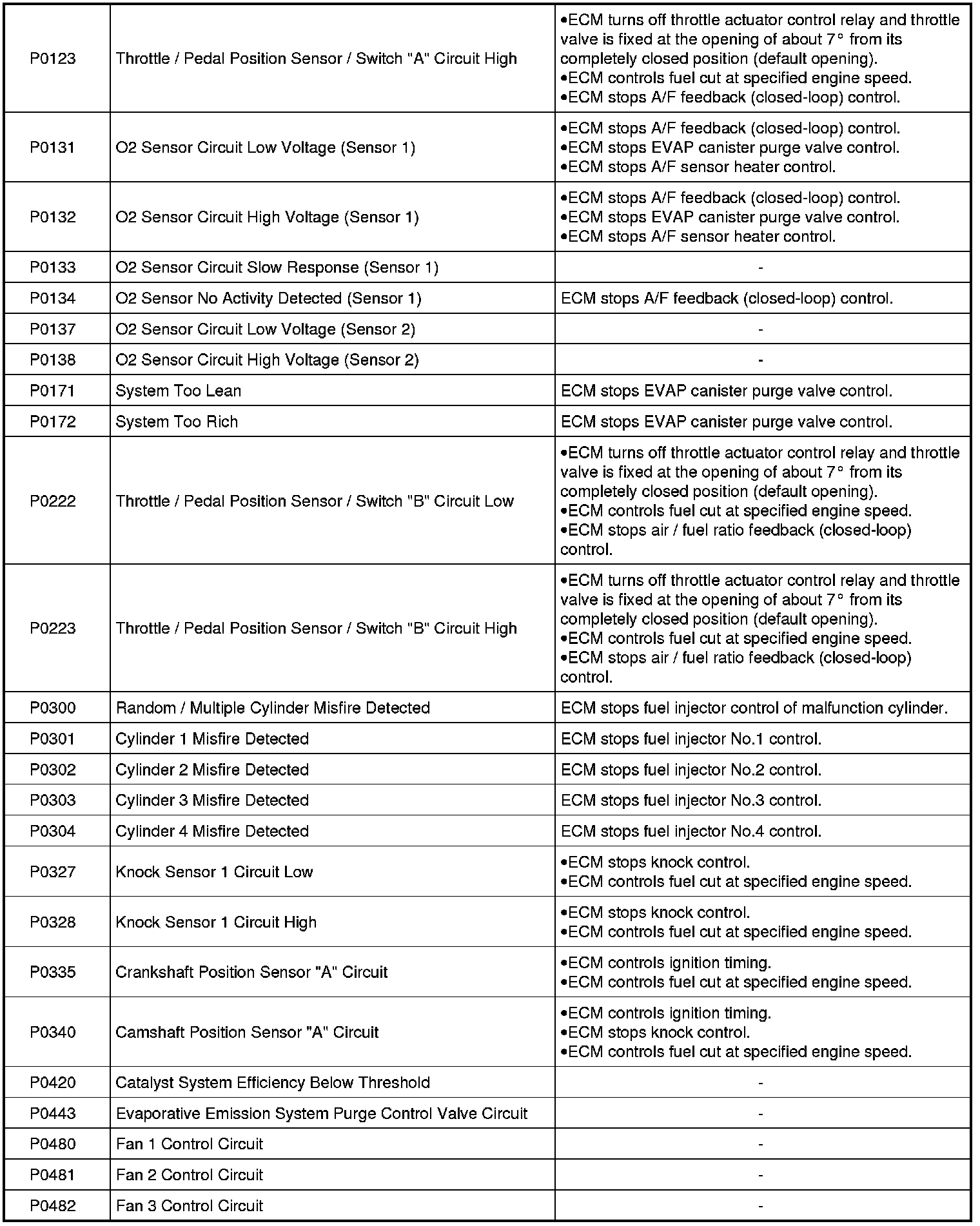

When any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition.

EVAP-Leak-Check Model























Non-EVAP-Leak-Check Model
