Charging System: Testing and Inspection

Generator Symptom Diagnosis

Trouble in charging system will show up as one or more of the following conditions.

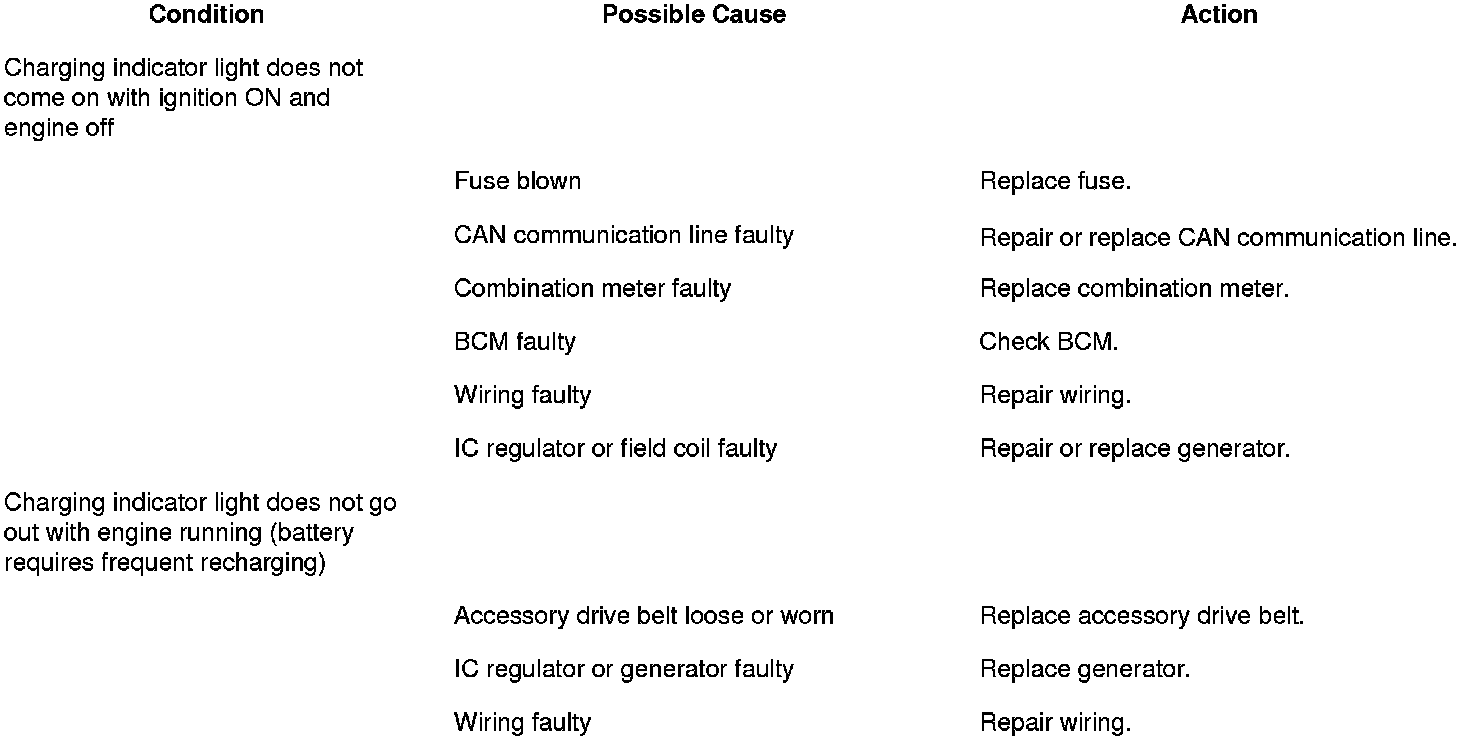

Charging Indicator Light Operation Failure

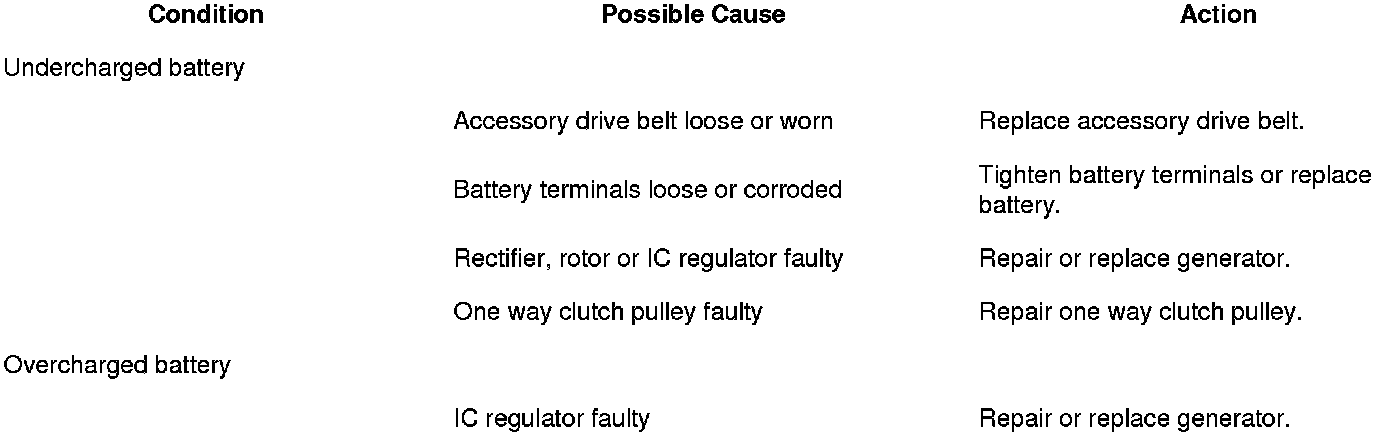

Battery Charging Failure

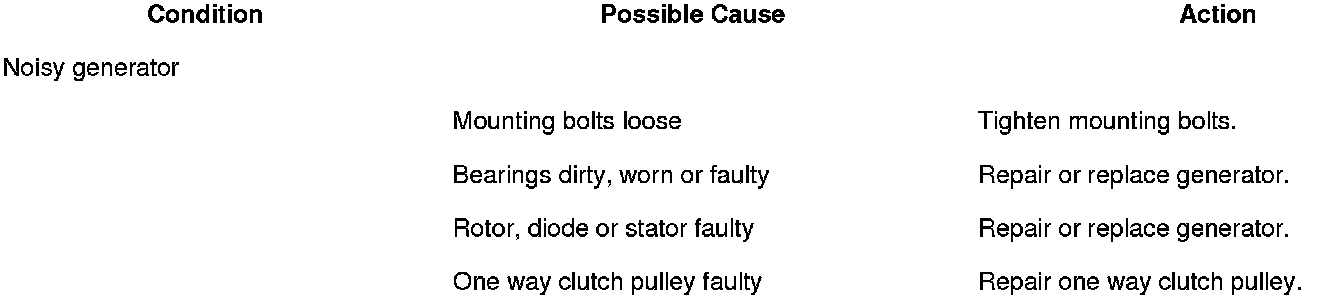

Noise
