Component Tests and General Diagnostics

Remote Controller Inspection

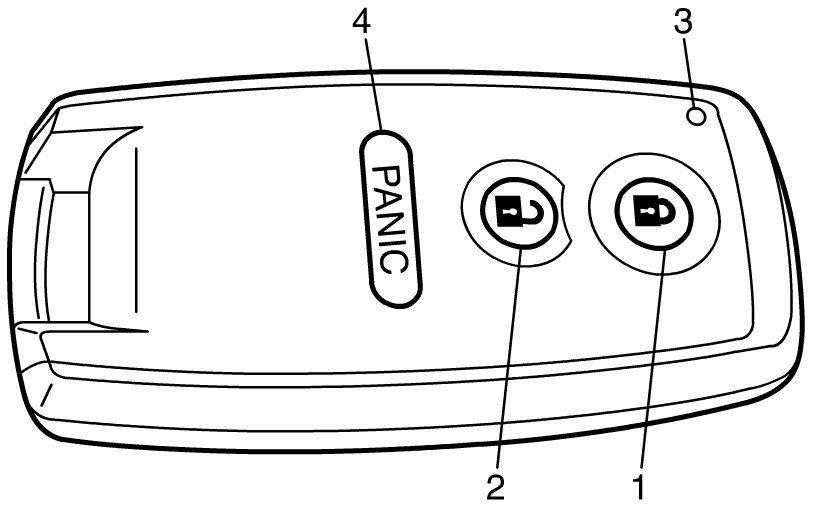

Check that remote controller operation indicator light (3) lights up when lock (1), unlock (2) or panic (4) button of remote controller is pushed.

If it doesn't light up in this check, replace battery and then recheck. If it doesn't light up even after battery replacement, replace remote controller.

NOTE:

When remote controller transmits lock, unlock or panic signal, operation indicator light lights up.
