Ignition Switch Inspection




Ignition Switch Inspection

Ignition Switch Removal and Installation

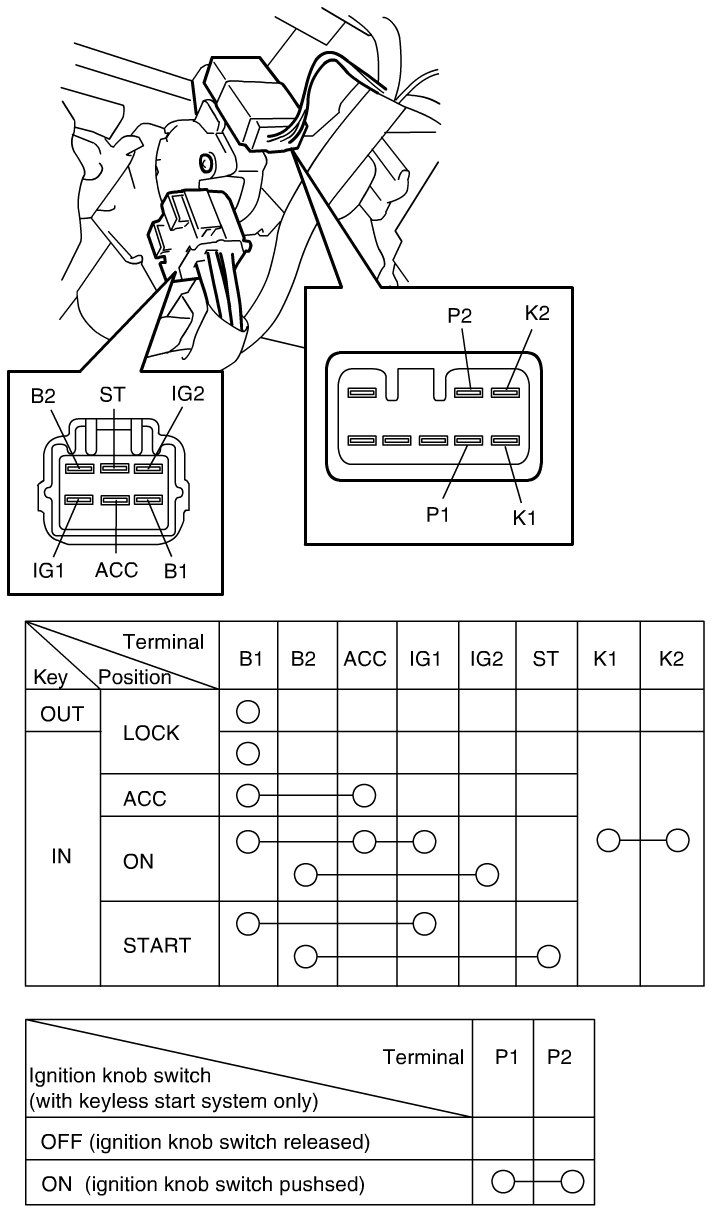

- Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
