Control Module: Service and Repair




4WD Control Module Removal and Installation

Removal

1) Disconnect negative cable from battery.
2) Remove center ventilation louver referring to Center Ventilation Louver Removal and Installation Center Ventilation Louver Removal and Installation.

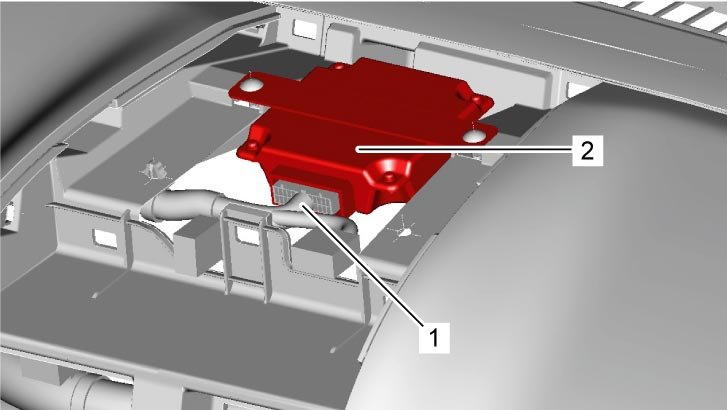

3) Disconnect connector (1) from 4WD control module (2).
4) Remove 4WD control module.






Installation

Reverse removal procedure for installation.
