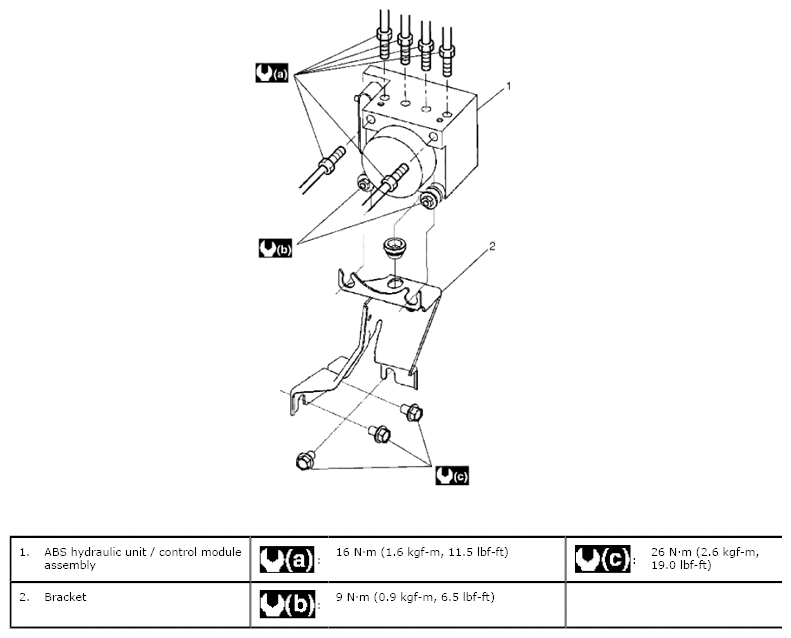

ABS Hydraulic Unit/Control Module Assembly Components
CAUTION:
- Performing certain prohibited service operations will affect the original performance of the ABS hydraulic unit / control module assembly. Do not perform the following prohibited service operations:
- Do not disassemble the ABS hydraulic unit / control module assembly.
- Do not loosen the blind plug.
- Do not remove the motor.
- Regarding ABS hydraulic unit / control module assembly removal and installation, confirm specified torque and do not use impact tool to avoid damage.
- Use care not to allow dust to enter ABS hydraulic unit / control module.
- Do not place ABS hydraulic unit / control module on its side or upside down. Handling it in inappropriate way will affect its original performance.
- Do not give an impact to hydraulic unit.
- Brake fluid is extremely damaging to painted surfaces. If brake fluid contacts a painted surface, immediately wipe it off and flush the surface thoroughly with water.
