Key Indicator Light Check

Push the ignition knob switch (2) of the steering lock unit (1) and check that the key indicator light (3) in the combination meter lights up in red or blue. If it does not light, go to KEY INDICATOR LIGHT CIRCUIT CHECK (KEY INDICATOR LIGHT DOES NOT LIGHT WHEN IGNITION KNOB SWITCH IS PUSHED) .

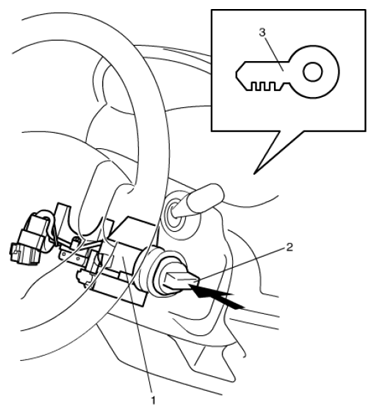

Fig 1: Checking Key Indicator Light

Courtesy of SUZUKI OF AMERICA CORP.
