Front Door Lock Switch Inspection

Remove door trim from door panel referring to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
Check for continuity between terminals "1" and "2" at each switch position as shown below. If check result is not as specified, replace.
Door lock switch specification

LOCK position: No continuity

UNLOCK position: Continuity

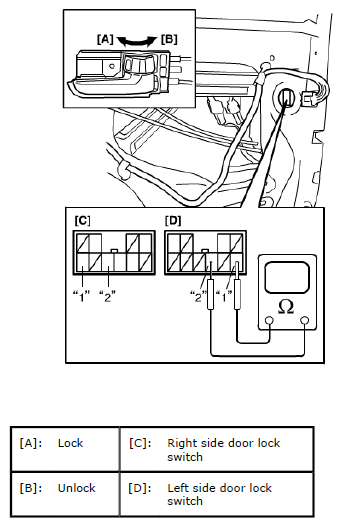

Fig 1: Checking Front Door Lock Switch Continuity
Courtesy of SUZUKI OF AMERICA CORP.
