Keyless Start Control Module Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Remove glove box from instrument panel.
  3. Disconnect connector from keyless start control module.
  4. Remove keyless start control module mounting bolt and then remove keyless start control module (1) from steering support member (2).

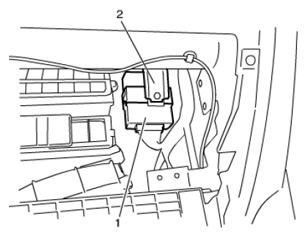

    Fig 1: Identifying Keyless Start Control Module And Steering Support Member
    G06869311Courtesy of SUZUKI OF AMERICA CORP.
