Front Pillar Window Removal and Installation
Reference: FRONT PILLAR WINDOW COMPONENTS
Refer to WINDSHIELD REMOVAL AND INSTALLATION as preparation, removal and installation procedures are basically the same. However, note the following.

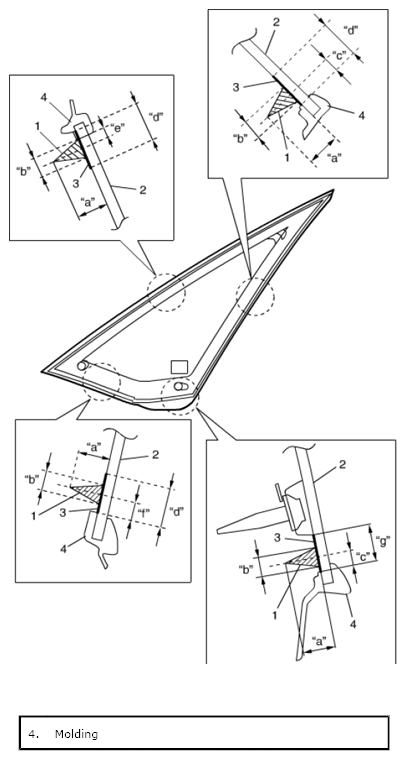

- Observe the following precautions when applying adhesive (1) along glass (2) edge.
- Adhesive (1) should be applied evenly especially in height.
- Be careful not to damage primer (3).
- Press glass against body quickly after adhesive (1) is applied.
Adhesive amount specification and position for front pillar window
Height "a": 10 mm (0.39 in.)
Width "b": 6 mm (0.24 in.)
Position "c": 4.5 mm (0.18 in.)
Width "d": 12 mm (0.47 in.)
Position "e": 3.5 mm (0.14 in.)
Position "f": 5.5 mm (0.22 in.)
Width "g": 11.3 mm (0.44 in.)
