Hatchback Model

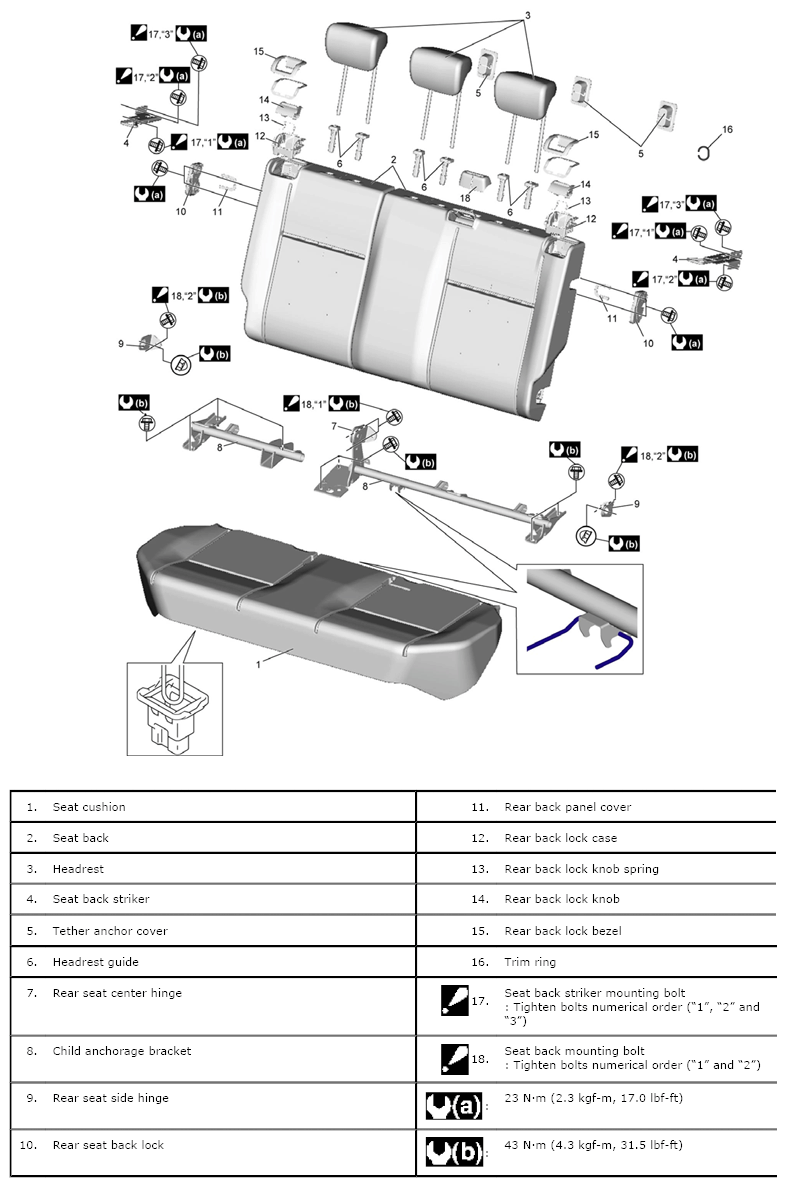

Fig 1: Rear Seat Replacement Components - Hatchback Model With Torque Specifications
G06868924Courtesy of SUZUKI OF AMERICA CORP.
