Electronic Stability Program Component Location

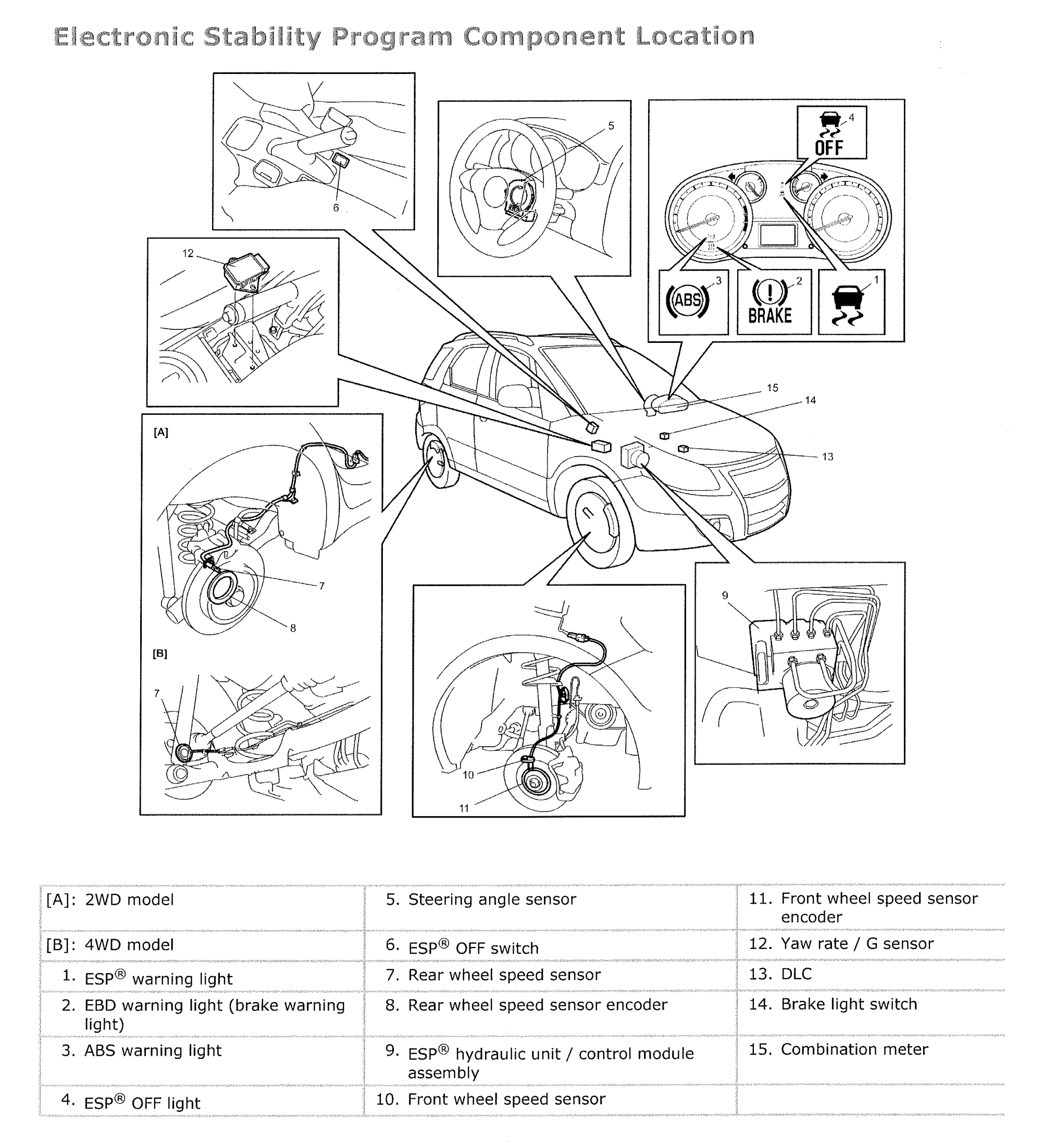

Fig 1: Identifying Electronic Stability Program Components
G00540867Courtesy of SUZUKI OF AMERICA CORP.
