Warning Light, Indicator Light Description

There are four types of warning light and indicator light in instrument cluster, which are controlled by ESP® control module. They give warning/indication to driver by changing the modes light ON/blinking/light OFF.

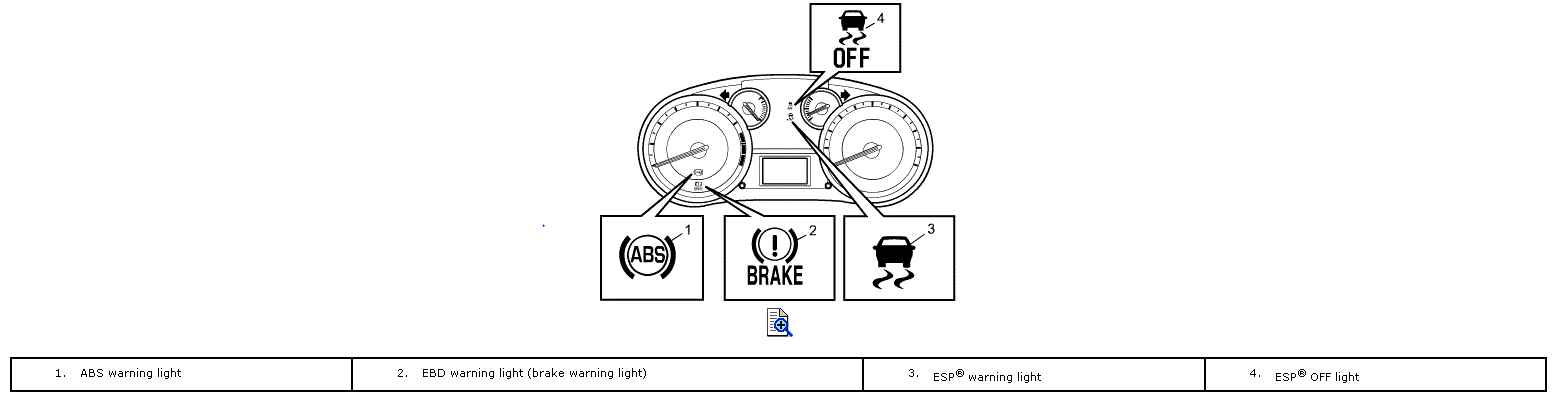

Fig 1: Identifying Warning Light, Indicator Light

Courtesy of SUZUKI OF AMERICA CORP.

The followings are the condition and operation of warning lights and indicator lights.

WARNING LIGHT, INDICATOR LIGHT DESCRIPTION

Warning light/Indicator light	Condition and operation
ABS warning light	If abnormality in ABS is detected, the light turns "ON".
EBD warning light (brake warning light)	abnormality in EBD system is detected, the light turns "ON". If bake fluid level in reservoir is lower than minimum level, the light turns "ON". If parking brake lever is pulled up, the light turns "ON".
ESP® warning light	If abnormality in ESP® system is detected, the light turns "ON". If traction control and/or stability control is activated, the light blinks.
ESP® OFF light	If ESP® OFF light turns "ON", to indicate that ESP® control module stops traction control and stability control. If DTC C1075 is detected, i.e., steering angle sensor calibration is incomplete, the light turns "ON".
