Precautions in Diagnosing Troubles

To ensure that the trouble diagnosis is done accurately and smoothly, observe the following and follow ELECTRONIC STABILITY PROGRAM CHECK .

• Diagnostic information stored in ESP® control module memory can be cleared as well as checked by using SUZUKI scan tool. Before using scan tool, read its Operator's (Instruction) Manual carefully to have good understanding as to what functions are available and how to use it.
• If the vehicles was operated in any of the following ways, ESP® warning light may light momentarily but this does not indicate anything abnormal in ESP®.
  • The vehicle was driven with parking brake pulled.
  • The vehicle was driven with brake dragging.
  • The vehicle was stuck in mud, sand, etc.
  • Wheel spin occurred while driving.
  • Wheel(s) was rotated while the vehicle was jacked up.
• Be sure to use the trouble diagnosis procedure as described in ELECTRONIC STABILITY PROGRAM CHECK . Failure to follow it may result in incorrect diagnosis. (Some other diagnosis trouble code may be stored by mistake in the memory of ESP® control module during inspection.)
• When disconnecting ESP® control module connector (1), pull up the lock lever (2) of connector.

  When connecting, set the connector on ESP® hydraulic unit/control module assembly and pull down the lock lever (2) until it locks.

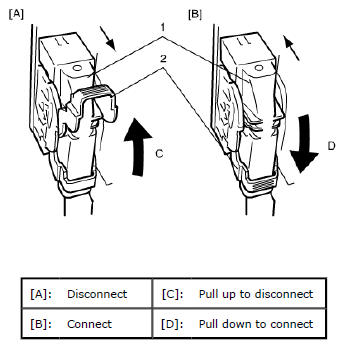

  Fig 1: Identifying ESP Control Module Assembly Lock Lever

  Courtesy of SUZUKI OF AMERICA CORP.
• Communication of ECM, TCM (CVT model), BCM, ESP® control module, keyless start control module, steering angle sensor, combination meter, yaw rate/G sensor, 4WD control module and DLC is established by CAN (Controller Area Network).

  Therefore, be sure to read PRECAUTIONS FOR INSTALLING MOBILE COMMUNICATION EQUIPMENT before inspection and handling CAN communication line.

  For CAN communication system, refer to description on CAN COMMUNICATION SYSTEM DESCRIPTION .
