ESP® Hydraulic Unit/Control Module Assembly Removal and Installation: Removal

Disconnect negative (-) cable from battery.

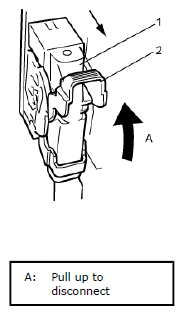

Disconnect ESP® hydraulic unit/control module assembly connector (1) by pull up the lock lever (2).

Fig 1: Pulling Up Lock Lever
Courtesy of SUZUKI OF AMERICA CORP.
Using special tool, loosen flare nuts (1) and disconnect brake pipes (2) from ESP® hydraulic unit/control module assembly (3).
Special Tool

(A): 09950-78220

NOTE: Put bleeder plug cap or the like onto pipe to prevent fluid from spilling. Do not allow brake fluid to get on painted surfaces.

Fig 2: Disconnecting Brake Pipes From ESP® Hydraulic Unit/Control Module Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove ESP® hydraulic unit/control module with bracket from vehicle by removing three bracket bolts.
Remove bolt and pull out ESP® hydraulic unit/control module assembly (1) from bracket (3) using flat end rod or the like (2).

Fig 3: Pulling Out ESP® Hydraulic Unit/Control Module Assembly From Bracket
Courtesy of SUZUKI OF AMERICA CORP.
