Not Using SUZUKI Scan Tool

  1. Set steering wheel in straight-ahead position.
  2. Confirm that battery terminals and/or related fuses securely installed (if removed).
  3. Start engine.
    NOTE: If power to steering angle sensor is shut off, DTC C1075 is detected and ESP® OFF light (1) lights up.
    If other indicator than the above lights up, other DTC than C1075 may be detected. Diagnose the DTC other than C1075 first.

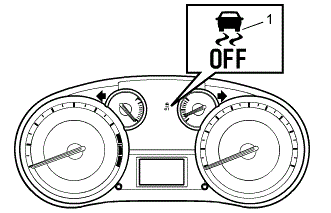

    Fig 1: Identifying ESP® OFF Indicator Light
    G00540869Courtesy of SUZUKI OF AMERICA CORP.
  4. Drive straight for approximately 35 km/h (21.8 mile/h) or more and 10 seconds or more.
