BCM and Related System Component Location

Reference: BCM GENERAL DESCRIPTION

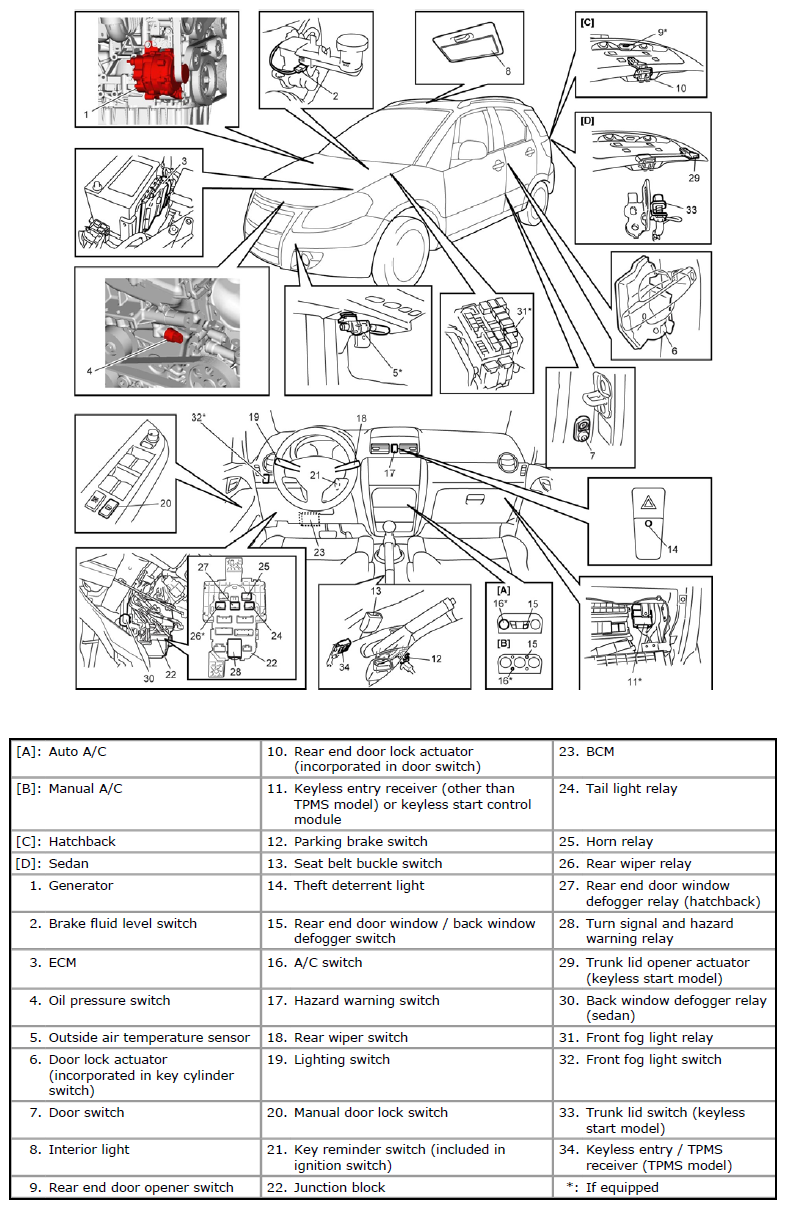

Fig 1: BCM And Related System Components Location
G06868092Courtesy of SUZUKI OF AMERICA CORP.
