How to Read System Circuit Diagram

The circuit diagram is designed so the current flows from the top of the diagram (power source) to the bottom of the diagram (ground) as if giving an image of water flow.

1. Fuse No  .
2. Circuit Jumping Information/Direction
   NOTE: This means "Jump to the information directed with the arrow(s) by their number.
   (For example: "Two arrows directing left" means "Jump to previous information".) You will find the same symbol with the arrows directing opposite in the referenced information.
   The circuit continues between the symbols.
3. Circuit Jumping Point/Direction
   NOTE: The circuit continues to the same symbol with opposite direction within the information.
   You will find the other symbol in the direction of the arrow.
4. Terminals-in-One-Connector Mark
5. Wire Color
6. Shield Wire
7. Ground Point
8. "From" or "To" (With ID Letter (s))
9. Specification Variation

   The white arrow between A and B means "or".

10. "From" (With ID Letter (s))
11. "To" (With ID Letter (s))
12. Connector Code
13. Terminal No  .
14. Symbol Mark
15. "SEE" Mark

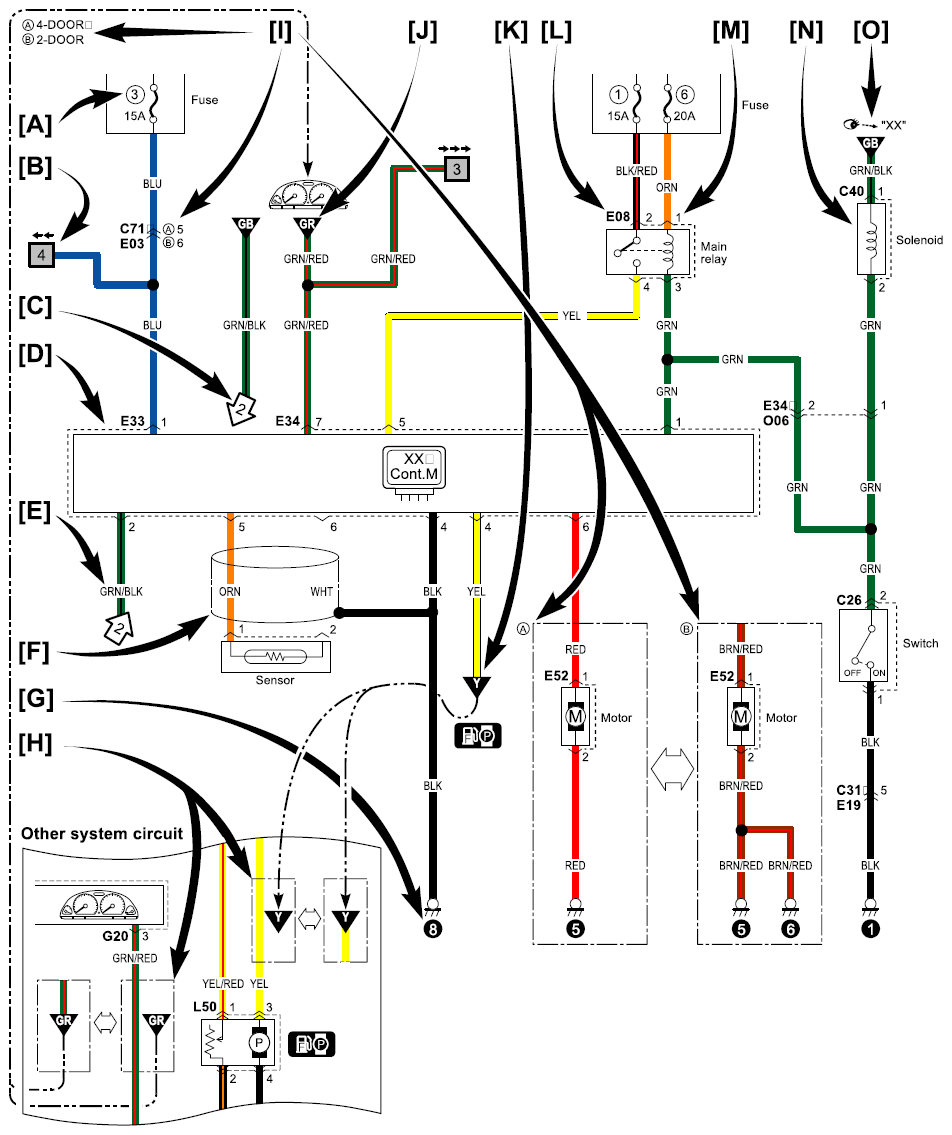

    Fig 1: System Circuit Diagram
