Engine harness

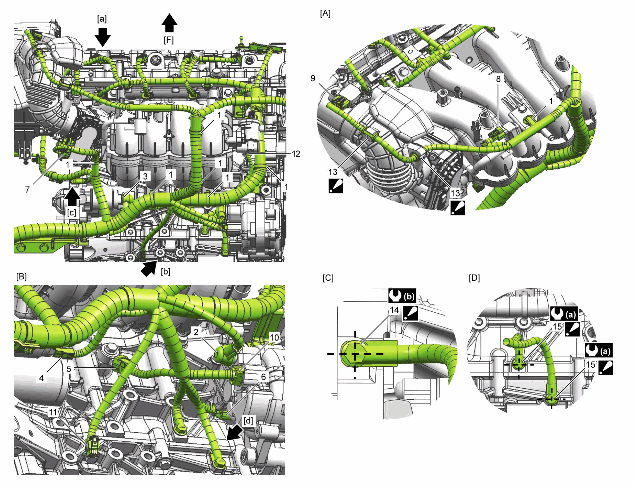

Fig 1: Identifying Engine Harness (1 of 2)
G00539314Courtesy of SUZUKI OF AMERICA CORP.

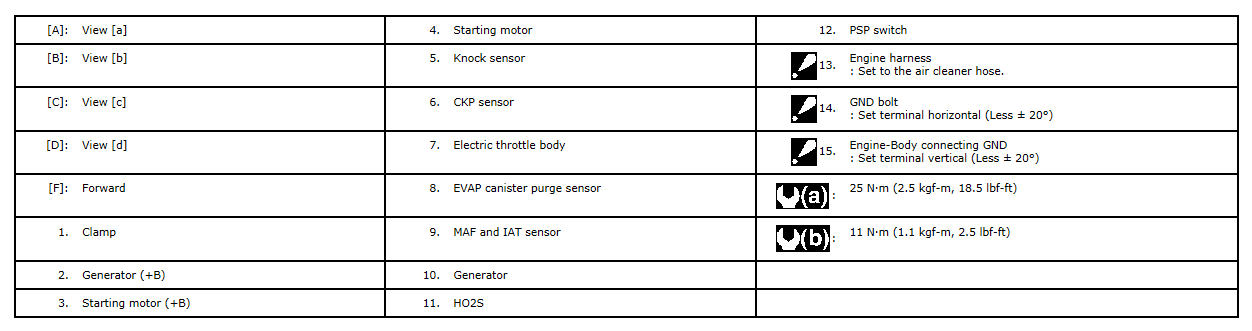

Fig 2: Identifying Engine Harness (2 of 2)
G00539315Courtesy of SUZUKI OF AMERICA CORP.
