A-10 4WD Control System

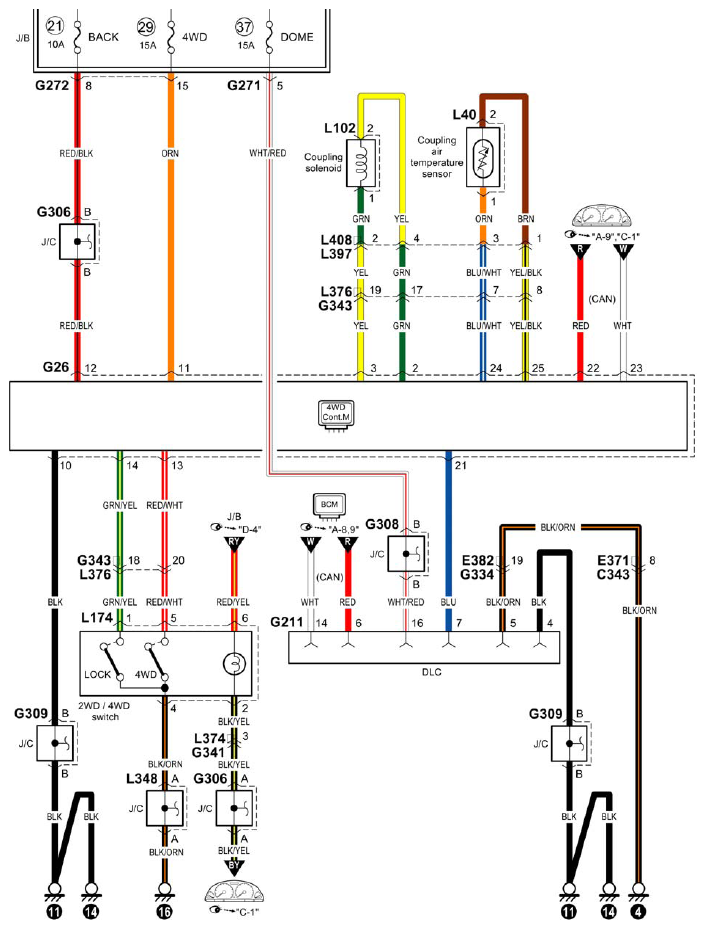

Fig 1: A-10 4WD Control System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
