Starting Motor Components

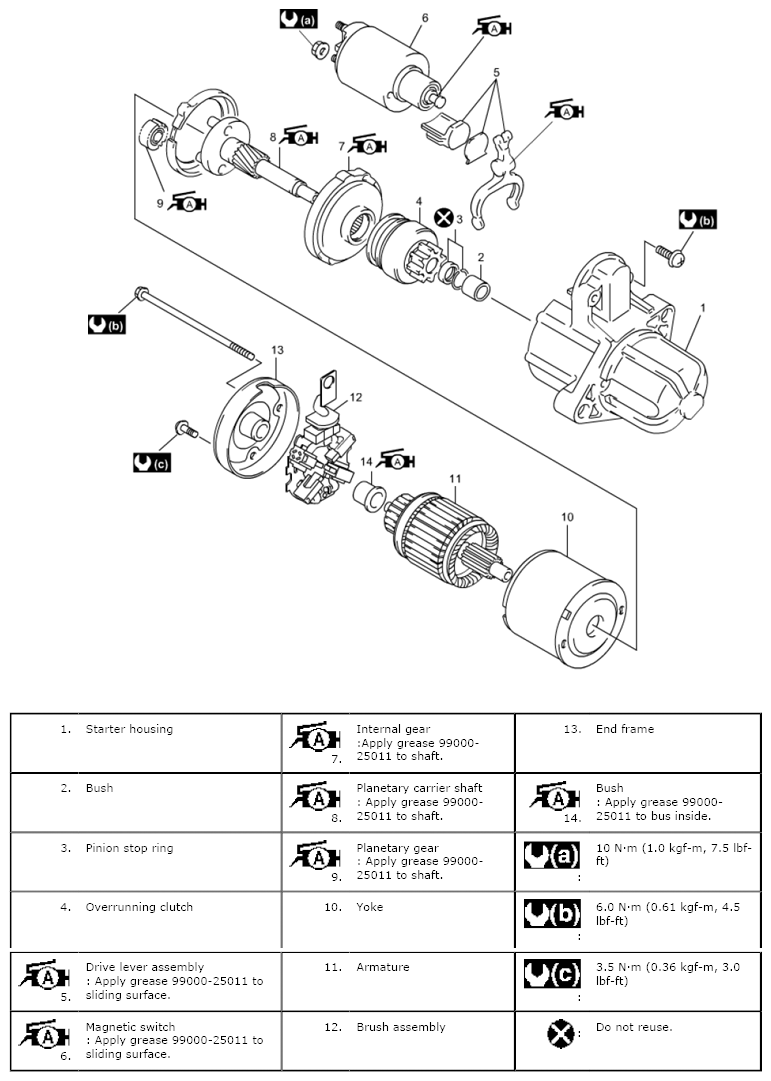

Fig 1: Identifying Starting Motor Replacement Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
