Exhaust System Components

WARNING: Touching a hot exhaust system component will cause a burn. Do not perform any service work on the exhaust system until the exhaust system is cool.

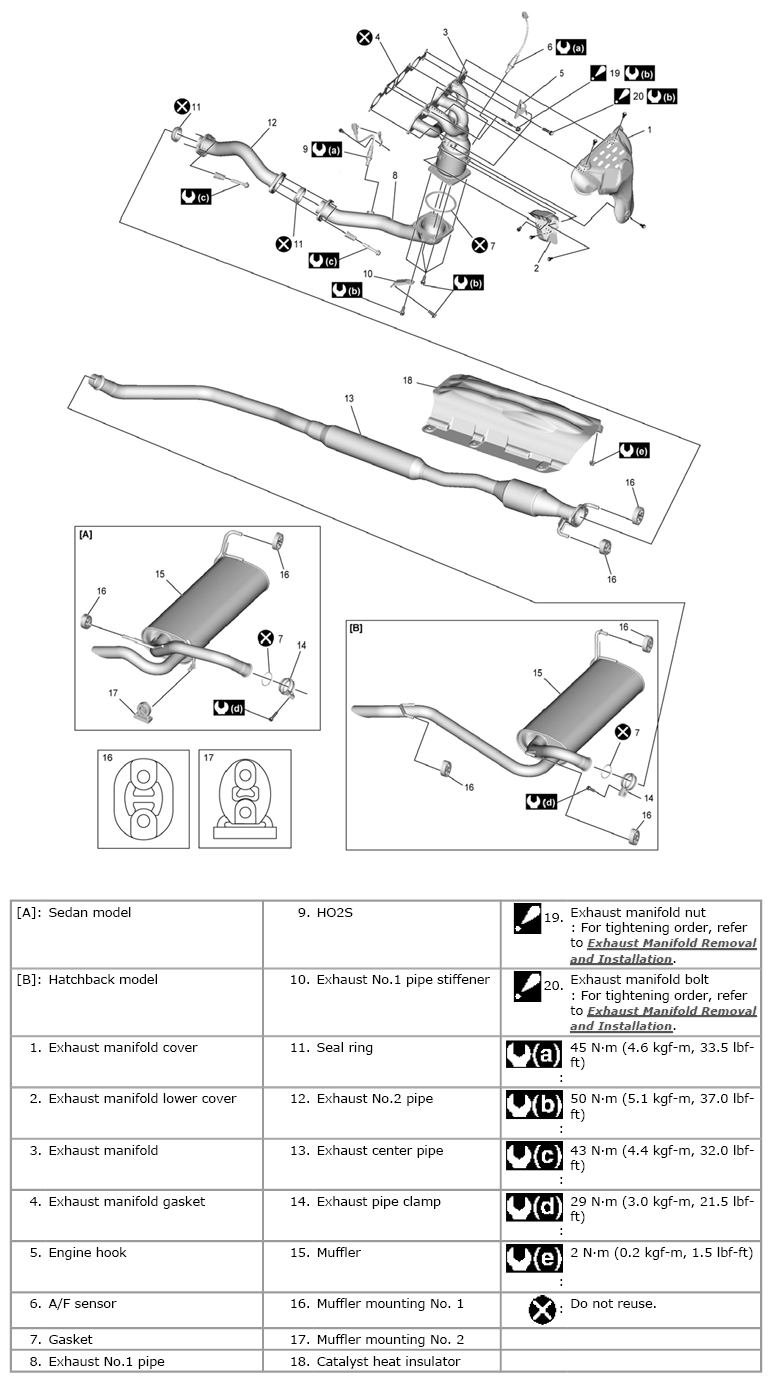

Fig 1: Exhaust System Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
