Air Fuel Ratio (A/F) Sensor Removal and Installation: Installation

Reverse removal procedure noting the following.

• Tighten A/F sensor (1) to specified torque.

  Tightening torque

  A/F sensor (a): 45 N.m (4.5 kg-m, 32.5 lbf-ft)

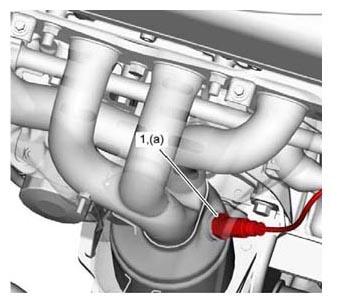

  Fig 1: Identifying A/F Sensor

  Courtesy of SUZUKI OF AMERICA CORP.
