Visual check

Check that O-ring is free from damage.
Check that end face of sensor and signal pulley tooth are free from any metal particles and damage.

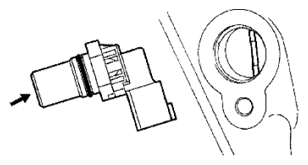

Fig 1: Identifying Crankshaft Position (CKP) Sensor
Courtesy of SUZUKI OF AMERICA CORP.
