Heated Oxygen Sensor (HO2S) Removal and Installation: Installation

Reverse removal procedure noting the following.

• Tighten HO2S (3) to specified torque.

  Tightening torque

  HO2S (a): 45 N.m (4.5 kg-m, 32.5 lbf-ft)

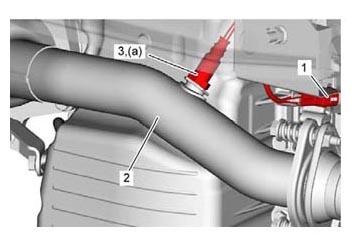

  Fig 1: Identifying Heated Oxygen Sensor Components

  Courtesy of SUZUKI OF AMERICA CORP.
