Knock Sensor Removal and Installation: Installation

Reference: KNOCK SENSOR INSPECTION

Reverse removal procedure noting the following.

• Install knock sensor (1) as shown in figure.
• Tighten knock sensor bolt (2) to specified torque.

  Tightening torque

  Knock sensor bolt (a): 25 N.m (2.5 kg-m, 18.5 lbf-ft)

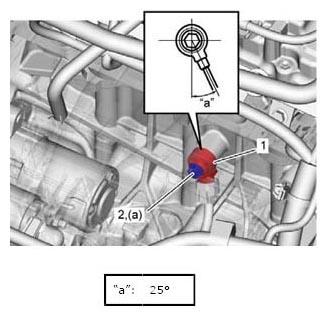

  Fig 1: Identifying Knock Sensor Bolt

  Courtesy of SUZUKI OF AMERICA CORP.
