Fuel Pump Description

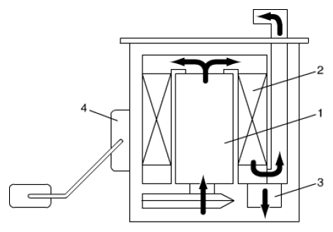

The fuel pump (1) is an in-tank type electric pump. Incorporated in the pump assembly are; a fuel filter (2), a fuel pressure regulator (3) and a fuel level sensor (4).

Fig 1: Identifying Fuel Pump Function
G06867157Courtesy of SUZUKI OF AMERICA CORP.
