Fuel System Components

WARNING: When performing the following procedure, be sure to observe Precautions on Fuel System Service and PRECAUTIONS FOR ENGINE in order to reduce the risk of fire and personal injury.

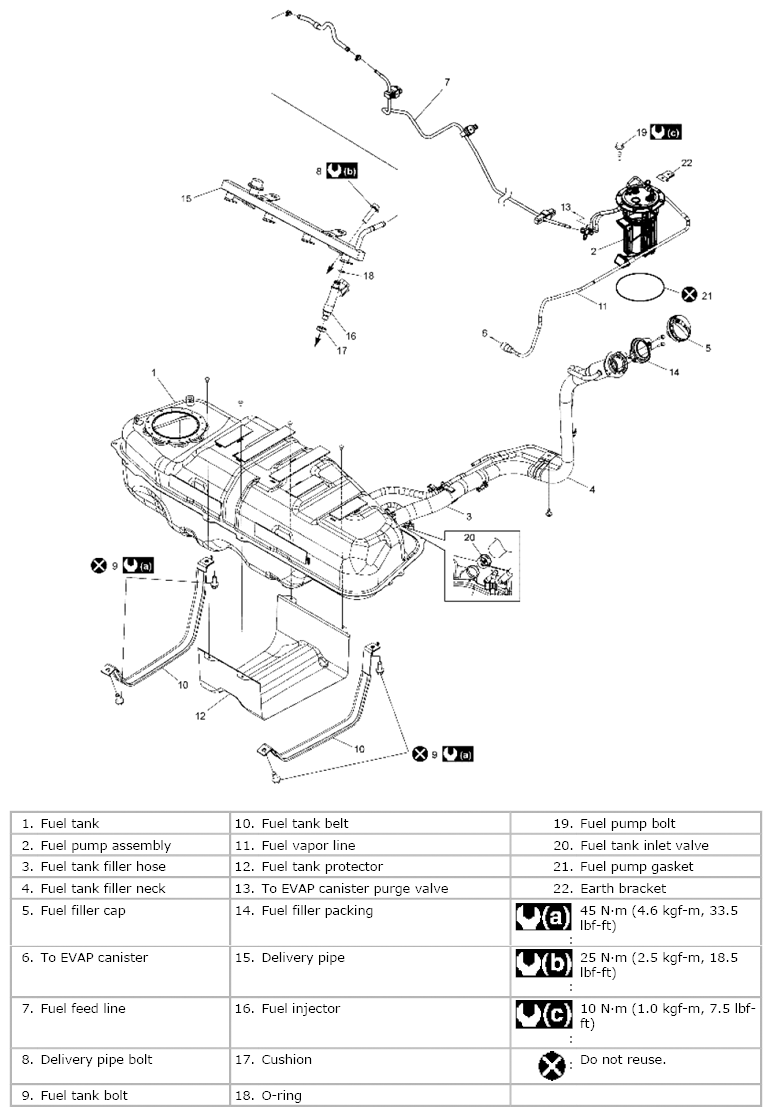

Fig 1: Identifying Fuel System Components

Courtesy of SUZUKI OF AMERICA CORP.
