EVAP System Components

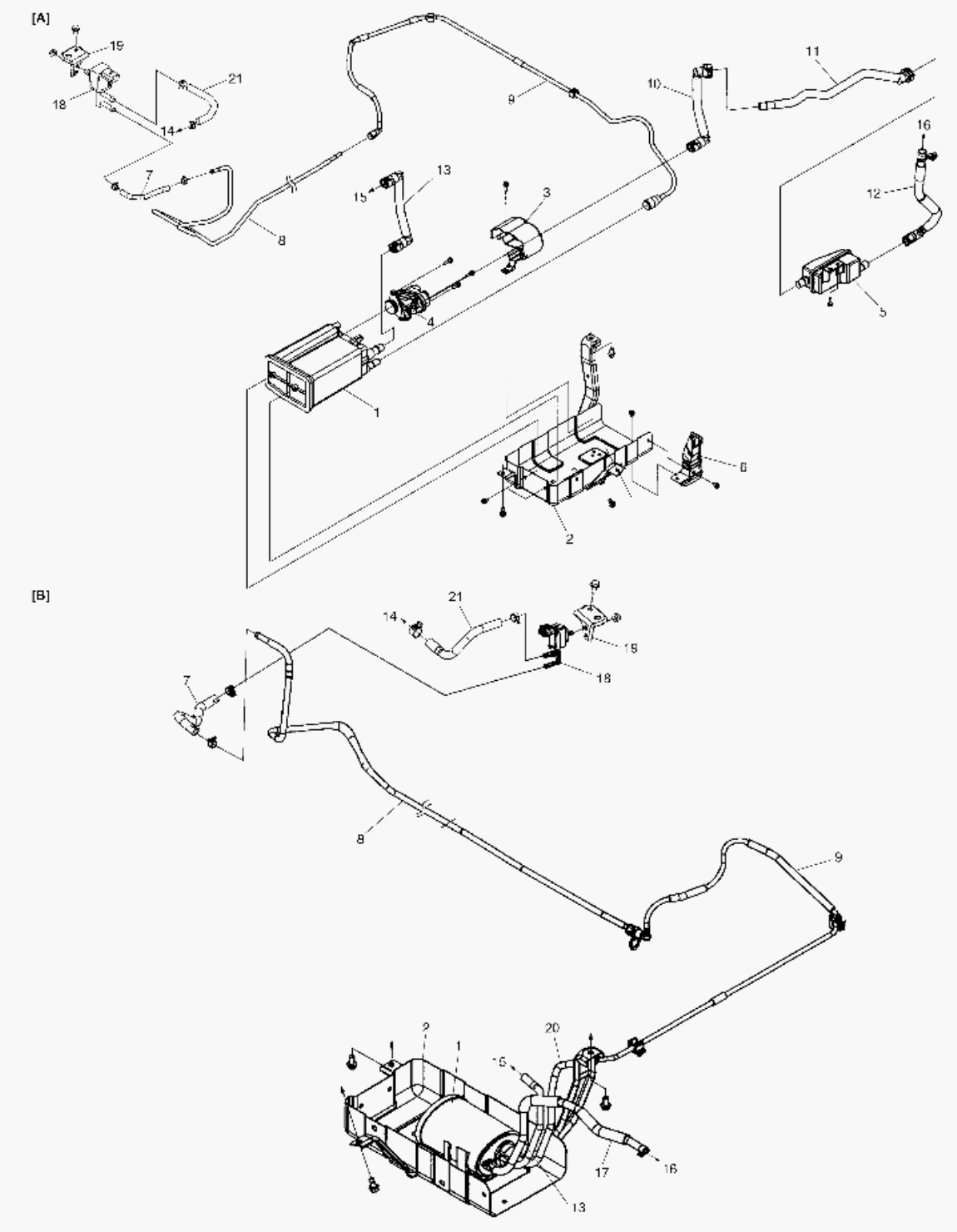

Fig 1: Identifying EVAP System Replacement Components (1 of 2)
G00520596Courtesy of SUZUKI OF AMERICA CORP.

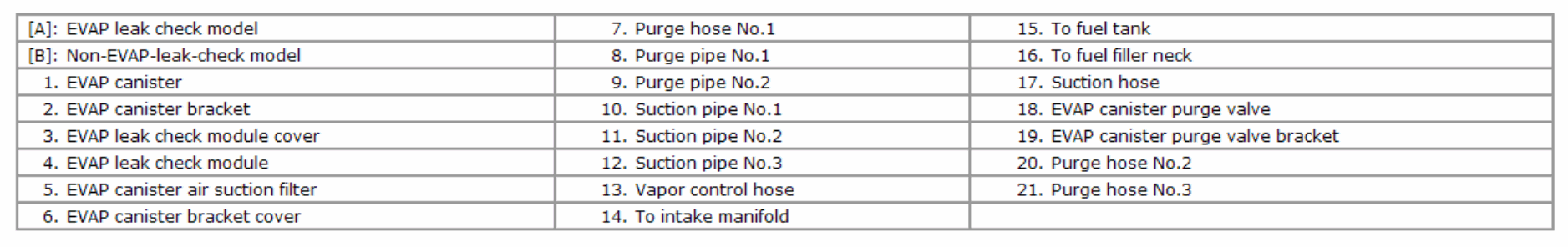

Fig 2: Identifying EVAP System Replacement Components (2 of 2)
G00520597Courtesy of SUZUKI OF AMERICA CORP.
