Transfer Oil Change
- Before changing or inspecting oil, be sure to stop engine and lift vehicle horizontally.
- Check leakage.
If leakage exists, correct it.
NOTE: Whenever vehicle is hoisted for any other service work than oil change, also be sure to check for oil leakage. - Remove exhaust No. 2 pipe, see EXHAUST PIPE AND MUFFLER REMOVAL AND INSTALLATION .

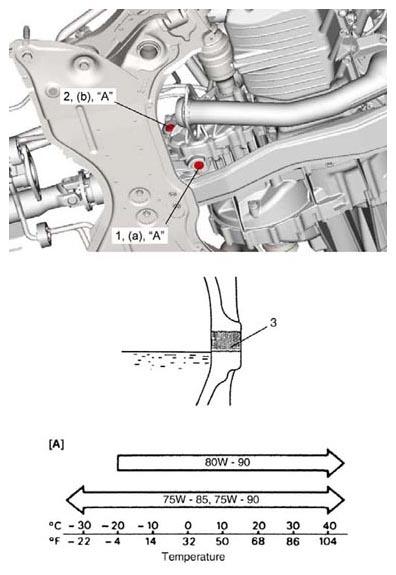

- Remove transfer oil level/filler plug (2).
- Remove transfer oil drain plug (1), and drain oil.
- Apply sealant to thread of transfer oil drain plug (1), and tighten it to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
Transfer oil drain plug (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
- Pour new specified oil up to oil level/filler plug hole (3).NOTE: It is highly recommended to use API GL-5 80W-90 gear oil.
Transfer oil specification
: API GL-5 (For SAE classification, refer to viscosity chart [A] in figure.)
Transfer oil capacity
Reference: 0.6 liters (1.2/1.0 US/Imp. pt)
- Apply sealant to thread of transfer oil level/filler plug, and then tighten it to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
Transfer oil level/filler plug (b): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
- Install exhaust No. 2 pipe, see EXHAUST PIPE AND MUFFLER REMOVAL AND INSTALLATION .
- Check exhaust system for exhaust gas leakage.
- Check transfer for oil leakage.
