Transfer Output Retainer Assembly Disassembly and Reassembly: Disassembly

Remove transfer output flange nut while holding flange (1) by using special tool.
Special Tool

(A): 09930-40113

Fig 1: Removing Transfer Output Flange Nut Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove transfer output flange (1) by bearing puller (2).

Fig 2: Removing Transfer Output Flange By Bearing Puller
Courtesy of SUZUKI OF AMERICA CORP.

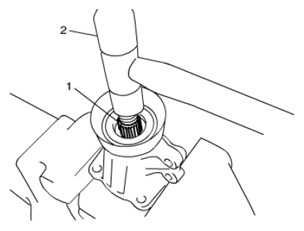

Drive out bevel pinion (1) from transfer output retainer by tapping it with plastic hammer (2).

Fig 3: Driving Out Bevel Pinion From Transfer Output Retainer
Courtesy of SUZUKI OF AMERICA CORP.

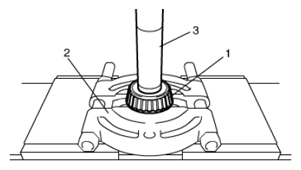

Drive out front taper roller bearing (1) from bevel pinion (3) by using bearing puller (2) and hydraulic press.

Fig 4: Driving Out Front Taper Roller Bearing From Bevel Pinion
Courtesy of SUZUKI OF AMERICA CORP.
Remove oil seal (1) by using special tool.
Special Tool

(A): 09913-50121

Fig 5: Removing Oil Seal By Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear taper roller bearing (1), pump seal (3) and spacer (2).

Fig 6: Removing Rear Taper Roller Bearing, Pump Seal And Spacer
Courtesy of SUZUKI OF AMERICA CORP.
Drive out outer races (2) (front and rear) by using brass bar (1).

Fig 7: Driving Out Outer Races (Front And Rear) By Using Brass Bar
